Question: Example 1 . 1 Determine - 1 whether the truss in figure 1 . 8 is statically determinate; 2 the magnitude of the forces in

Example 1.1
Determine -
1 whether the truss in figure 1.8 is statically determinate; 2 the magnitude of the forces in members BC, CE and ED; and 3 the magnitude of the reactions at A and F.

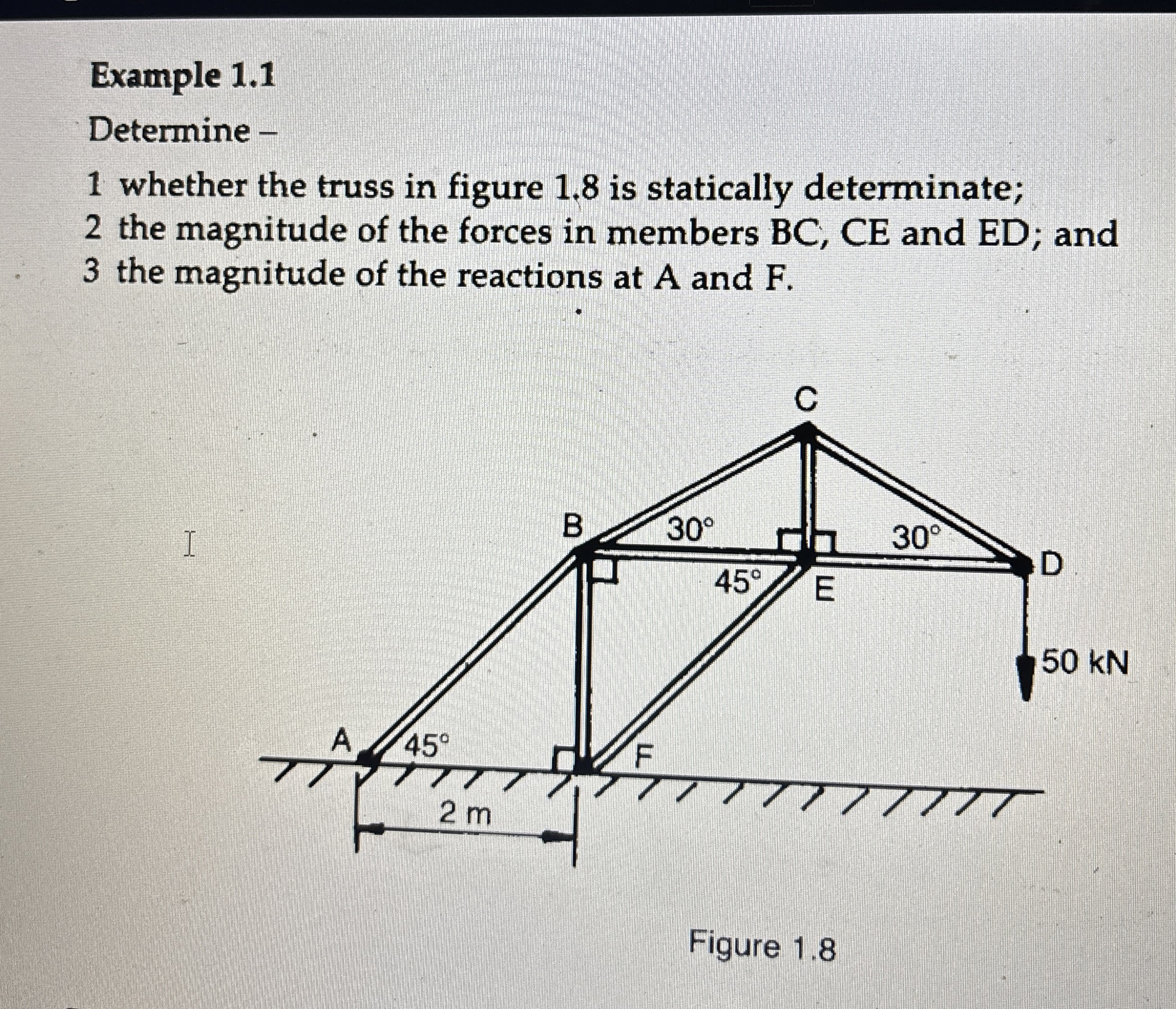

Figure 1.8
Example 1 . 1 Determine - 1 whether the truss in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
