Question: Example 1 8 - Gabled Frame 3 . 1 8 A steel gabled frame ( assembled as a three - hinged arch ) is subjected

Example 18- Gabled Frame

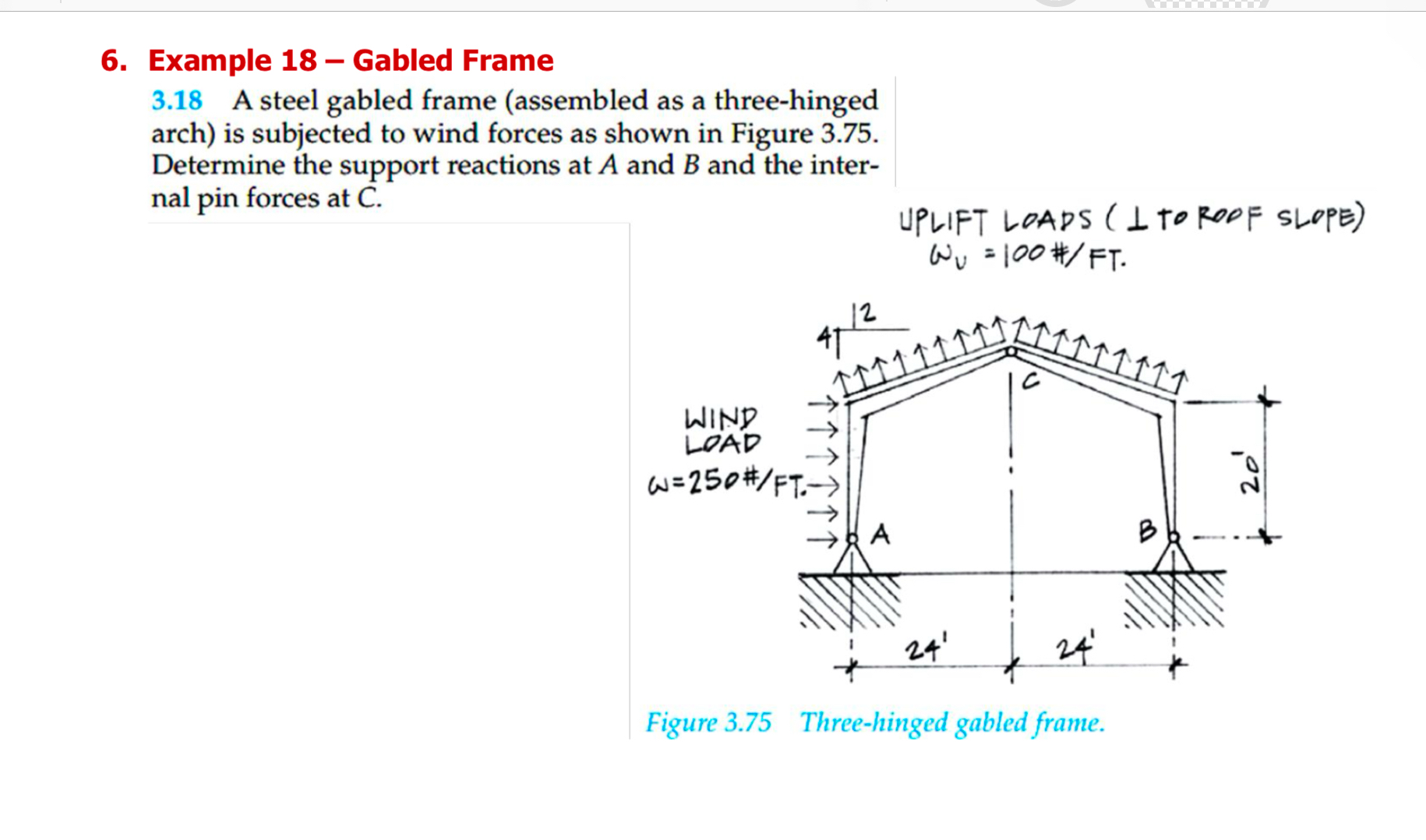

3.18 A steel gabled frame (assembled as a three-hinged arch) is subjected to wind forces as shown in Figure 3.75. Determine the support reactions at A and B and the internal pin forces at C.
)TO RODF SLOPE
Example 1 8 - Gabled Frame 3 . 1 8 A steel gabled

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
