Question: Example 1 :Space Truss Element Analysis The 3 - member truss is connected by ball - and - socket joints and fixed at nodes 1

Example 1:Space Truss Element Analysis

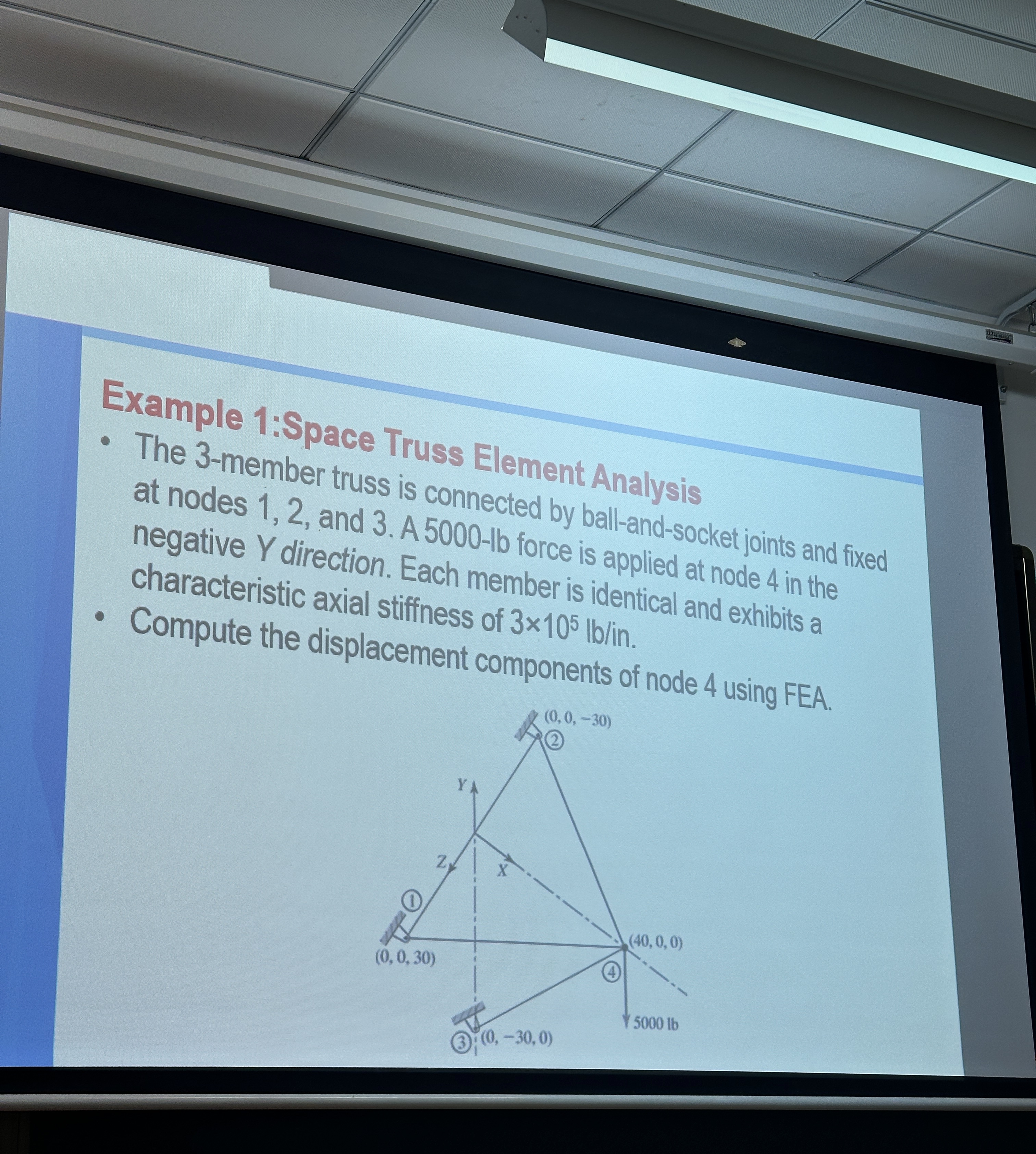

The 3-member truss is connected by ball-and-socket joints and fixed at nodes 1,2, and 3. A 5000-lb force is applied at node 4 in the negative Y direction. Each member is identical and exhibits a characteristic axial stiffess of 3105lbin.
Compute the displacement components of node 4 using FEA.
Example 1 :Space Truss Element Analysis The 3 -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
