Question: Example ? ? # 3 The 5 ft wide continuous footing is subjected to a concentric vertical load of 1 2 k f t and

Example ??# 3

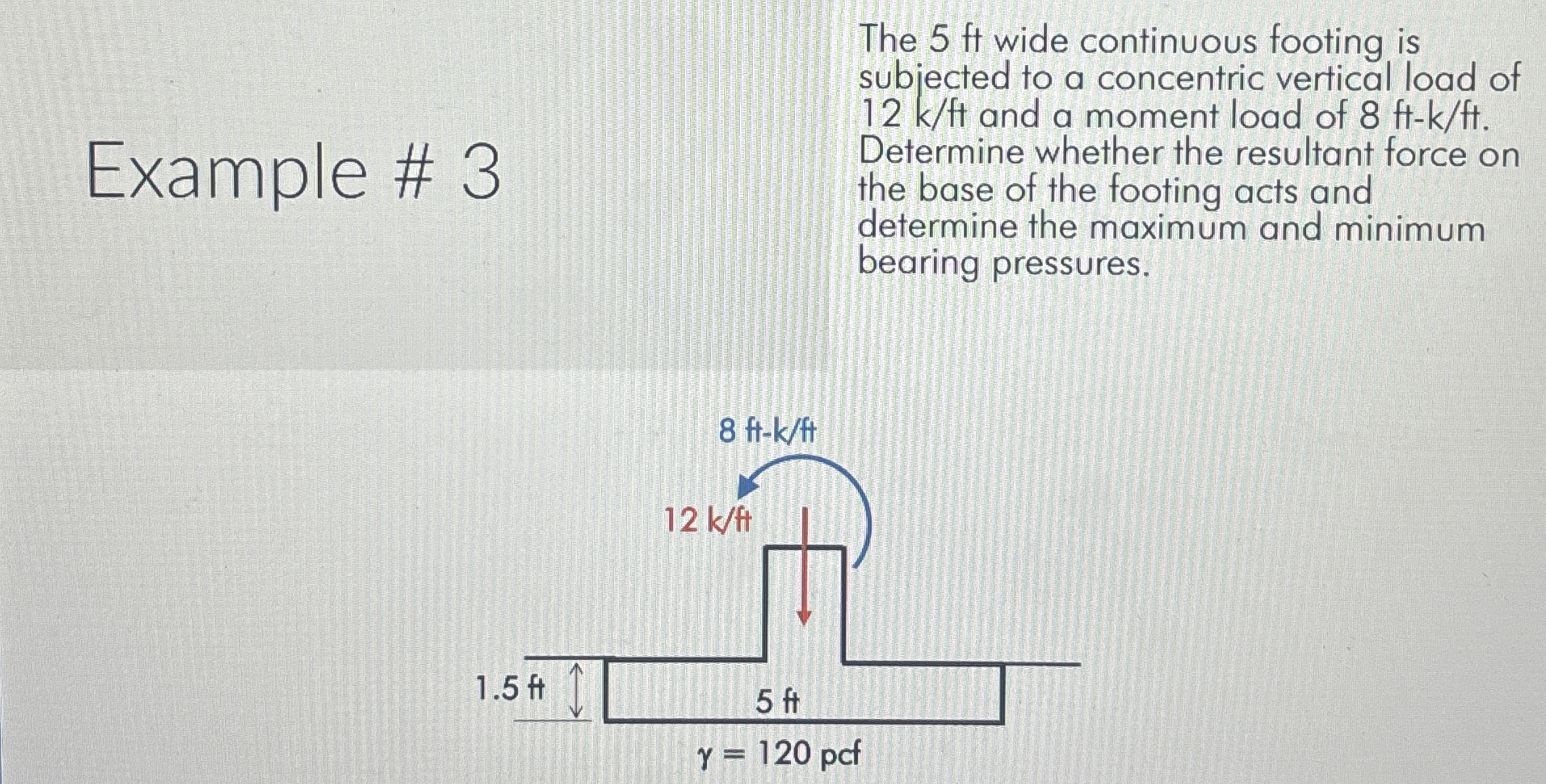

The 5 ft wide continuous footing is subjected to a concentric vertical load of 12kft and a moment load of 8ft-kft. Determine whether the resultant force on the base of the footing acts and determine the maximum and minimum bearing pressures.
Example ? ? # 3 The 5 ft wide continuous footing

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
