Question: Example 8 The uniform beam is supported by two rods A B and C D that have cross - sectional areas of 1 0 m

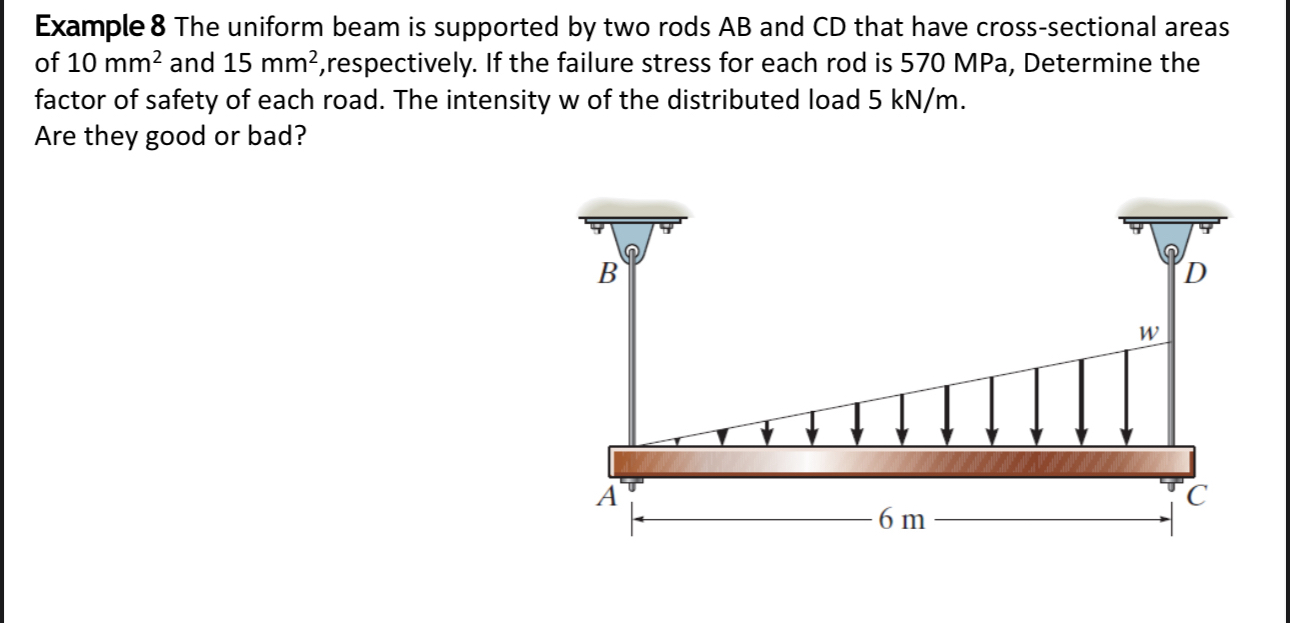

Example 8 The uniform beam is supported by two rods AB and CD that have cross-sectional areas of 10mm2 and 15mm2, respectively. If the failure stress for each rod is 570 MPa , Determine the factor of safety of each road. The intensity w of the distributed load 5kNm.
Are they good or bad?
Example 8 The uniform beam is supported by two

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
