Question: Example 9 . The cylinder in Fig. extends 5 f t into the paper. Compute the horizontal and vertical components of the pressure force on

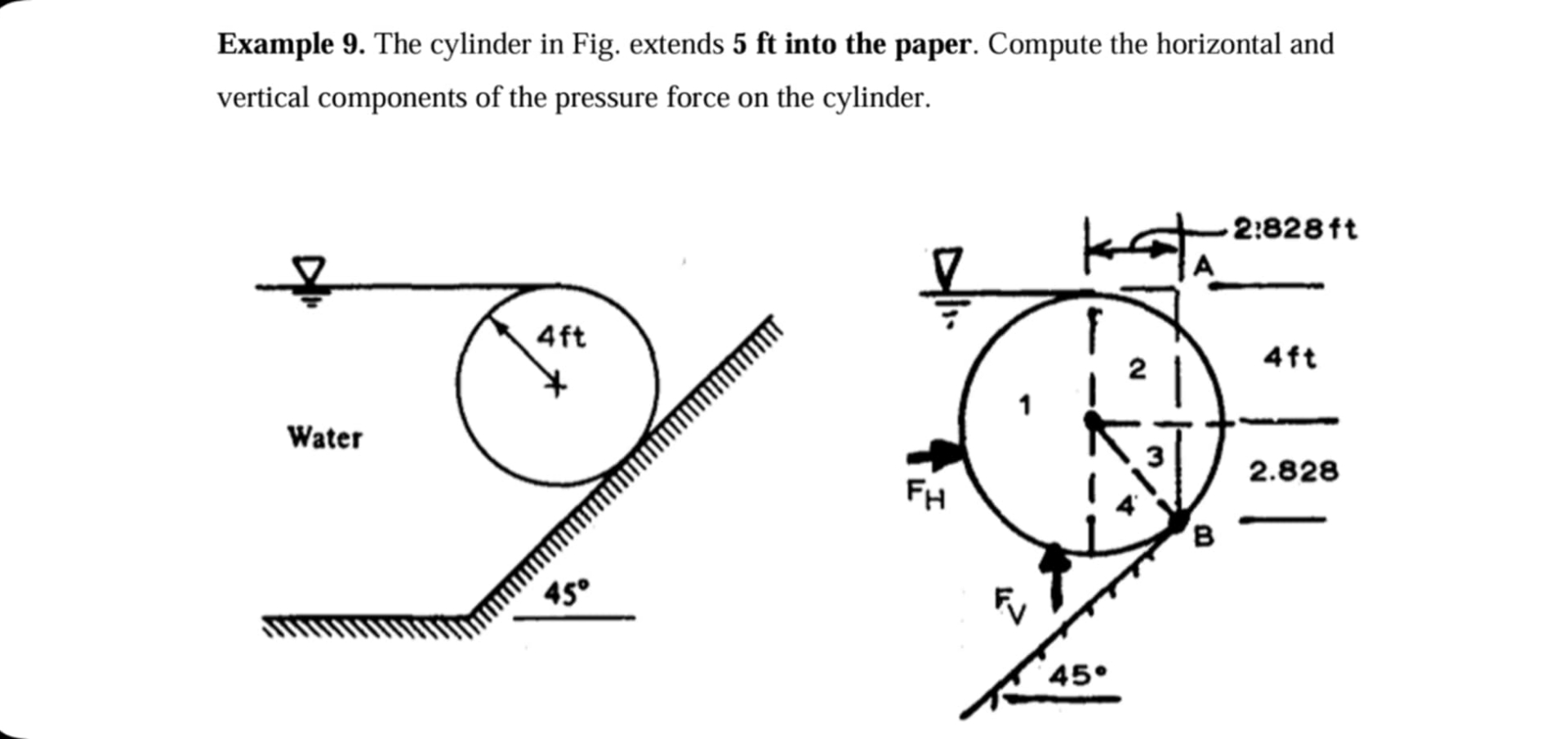

Example 9. The cylinder in Fig. extends 5ft into the paper. Compute the horizontal and vertical components of the pressure force on the cylinder.
Example 9 . The cylinder in Fig. extends 5 f t

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
