Question: Example: Figure shows three parallel plate capacitors with their capacitances. Capacitor 1 and capacitor 2 have the same plate areas and plate separations and capacitor

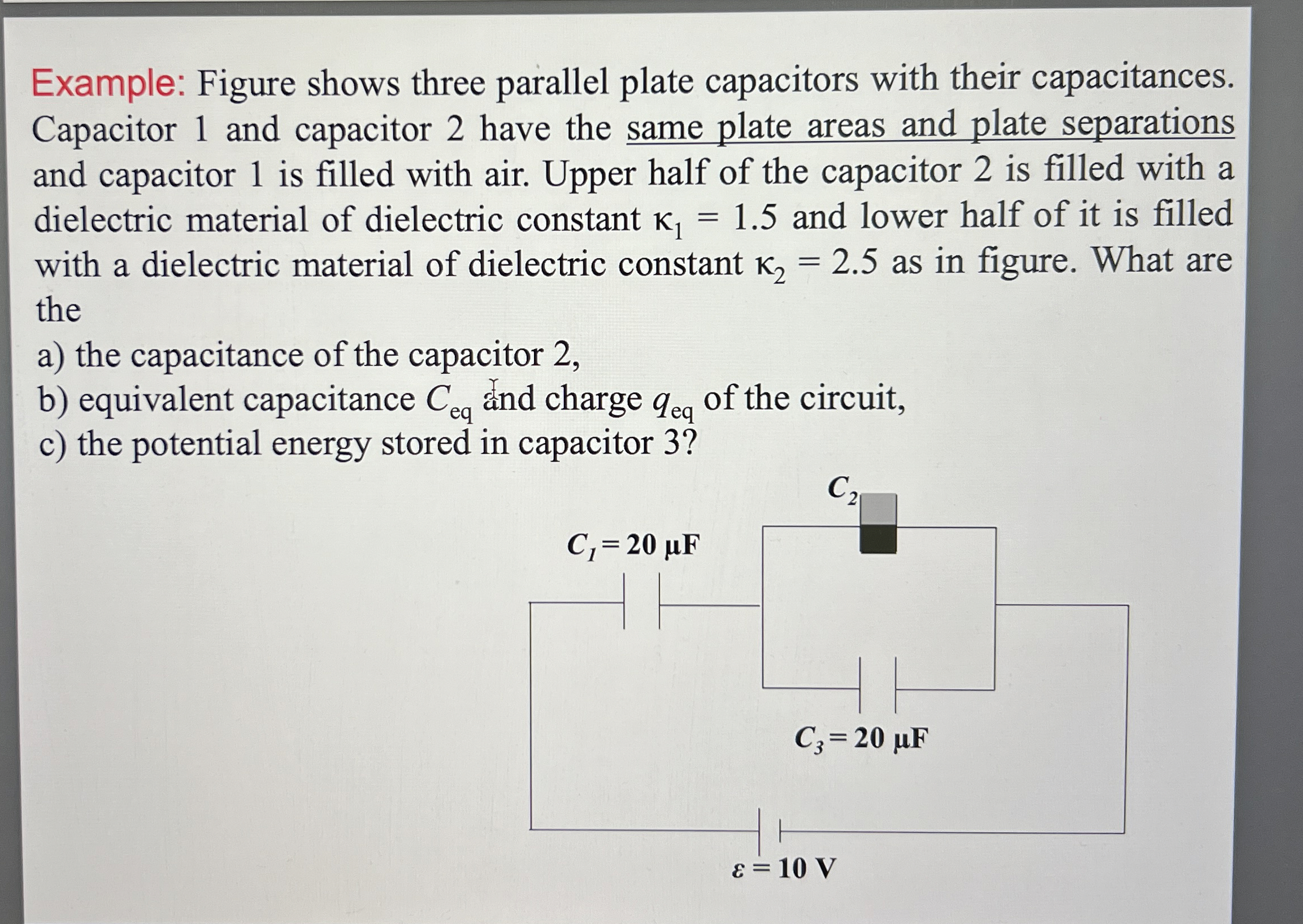

Example: Figure shows three parallel plate capacitors with their capacitances. Capacitor 1 and capacitor 2 have the same plate areas and plate separations and capacitor 1 is filled with air. Upper half of the capacitor 2 is filled with a dielectric material of dielectric constant 1=1.5 and lower half of it is filled with a dielectric material of dielectric constant 2=2.5 as in figure. What are the
a) the capacitance of the capacitor 2,
b) equivalent capacitance Ceq and charge qeq of the circuit,
c) the potential energy stored in capacitor 3?
