Question: Example Refer to Figure 1 2 . 1 2 a . Given: H = 4 m , = 1 6 . 5 k N m

Example

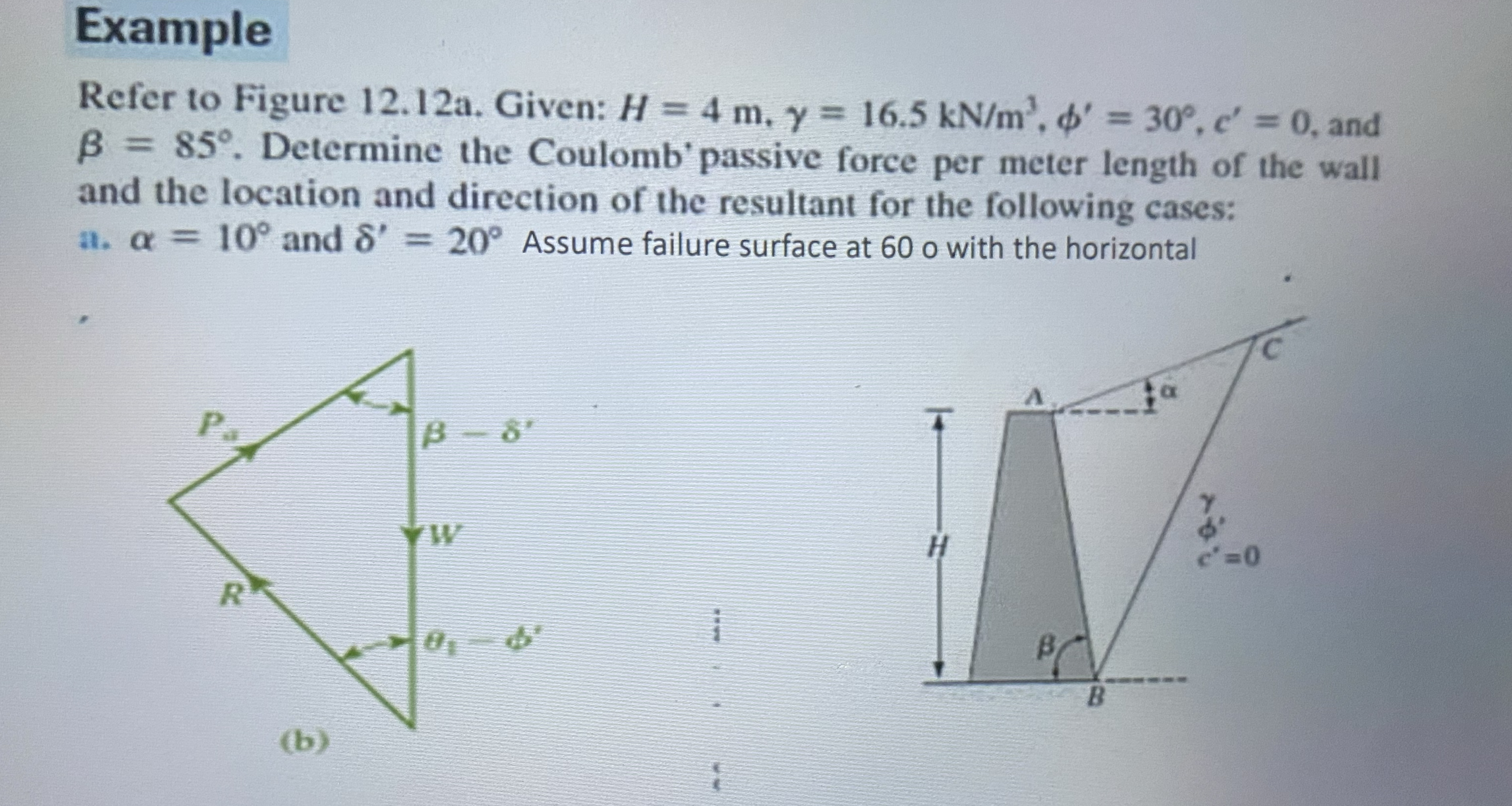

Refer to Figure 12.12a. Given: H=4m,=16.5kNm3,'=30,c'=0, and =85. Determine the Coulomb' passive force per meter length of the wall and the location and direction of the resultant for the following cases: a.=10 and '=20 Assume failure surface at 600 with the horizontal
Example Refer to Figure 1 2 . 1 2 a . Given: H =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
