Exercise 1: Draw a Precedence Diagramming Method (PDM) (a visual representation technique that depicts the activities involved in a project ) and calculate the critical path.

Precedence Diagramming Method (PDM) is a graphical representation technique. It shows the inter-dependencies of activities and is used in schedule development. The other name for this technique is Activity on Node (AON).

We use this method in drawing the project schedule network diagrams; for example, critical path network, critical chain network diagram, and others.

The Precedence Diagramming Method shows activity relationships. Hence, it is an important communication tool for stakeholders.

Activity	Estimated Effort (Hours)	Estimated Duration (Weeks)	Resource
Master Park Design	106	8	wildlife architects
Exhibit Design	26	2	wildlife architects
Exhibit Construction	132	10	A1 Builders
Concession Design	13	1	John J. Architects
Concession Construction	66	5	A1 Builders
Staffing	TBD	TBD	Reliable Staffing
Day Camp Development	40	3	Kids Inc. LLC
Training	13	1	WWF
Gift Shop Design	13	1	A1 Builders
Gift Shop Construction	53	4	A1 Builders

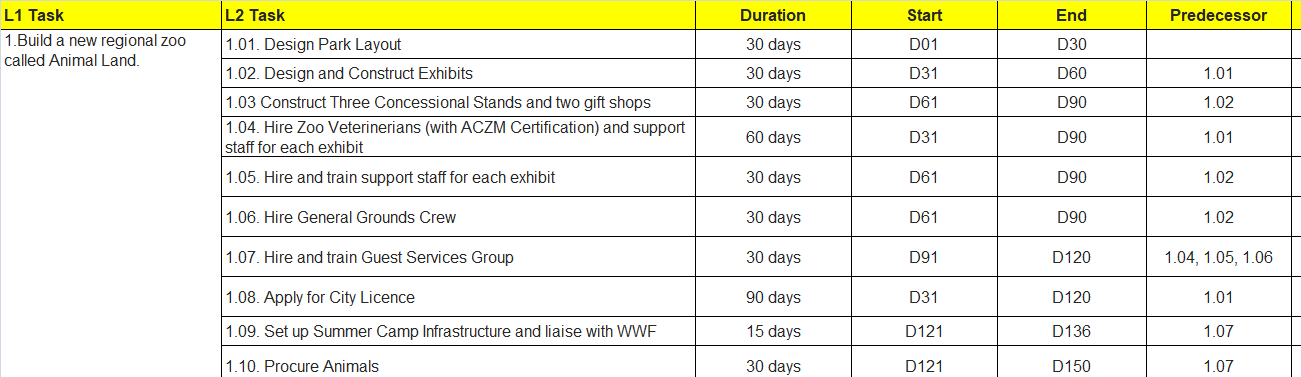

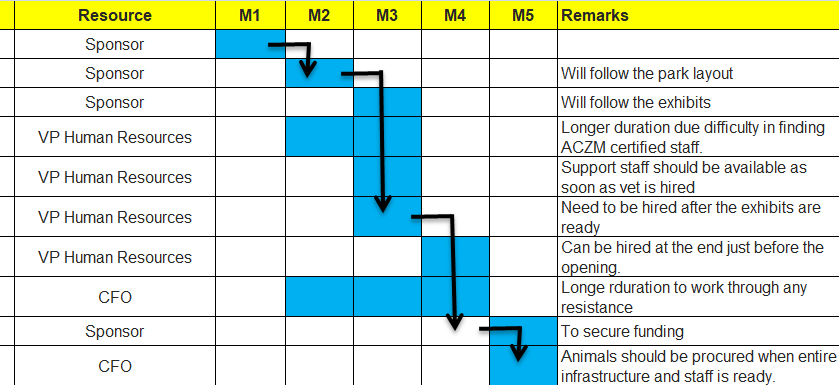

L2 Task Duration Start End Predecessor L1 Task 1.Build a new regional zoo called Animal Land. D01 D30 30 days 30 days 30 days D31 D60 1.01 D61 D90 1.02 1.01. Design Park Layout 1.02. Design and Construct Exhibits 1.03 Construct Three Concessional Stands and two gift shops 1.04. Hire Zoo Veterinerians (with ACZM Certification) and support staff for each exhibit 1.05. Hire and train support staff for each exhibit 60 days D31 D90 1.01 30 days D61 D90 1.02 1.06. Hire General Grounds Crew 30 days D61 D90 1.02 1.07. Hire and train Guest Services Group 30 days D91 D120 1.04, 1.05, 1.06 1.08. Apply for City Licence 90 days D31 D120 1.01 1.09. Set up Summer Camp Infrastructure and liaise with WWF 15 days D121 D136 1.07 1.10. Procure Animals 30 days D121 D150 1.07 Resource M1 M2 M3 M4 M5 Remarks Sponsor Sponsor Sponsor VP Human Resources VP Human Resources VP Human Resources Will follow the park layout Will follow the exhibits Longer duration due difficulty in finding ACZM certified staff. Support staff should be available as soon as vet is hired Need to be hired after the exhibits are ready Can be hired at the end just before the opening. Longe rduration to work through any resistance To secure funding Animals should be procured when entire infrastructure and staff is ready. VP Human Resources CFO Sponsor CFO
