Question: Exercise 11.21 Draw the dependency graph of the workflow log obtained in Exercise 11.20. Exercise 11.20: Abbr. Event cf Create Fine sb Send Bill pp

Exercise 11.21

Draw the dependency graph of the workflow log obtained in Exercise 11.20.

Exercise 11.20:

Exercise 11.21 Draw the dependency graph of the

Abbr. Event cf Create Fine sb Send Bill pp Process Payment cc Close Case sr Send Reminder

WorkFlow Log for Case ID-1: cf, sb, pp, cc

WorkFlow Log for Case ID-2: cf, sb, sr, pp, cc

WorkFlow Log for Case ID-3: cf, sb, sr, sr, pp, cc

WorkFlow Log for Case ID-4: cf, sb, sr, sr, pp, cc

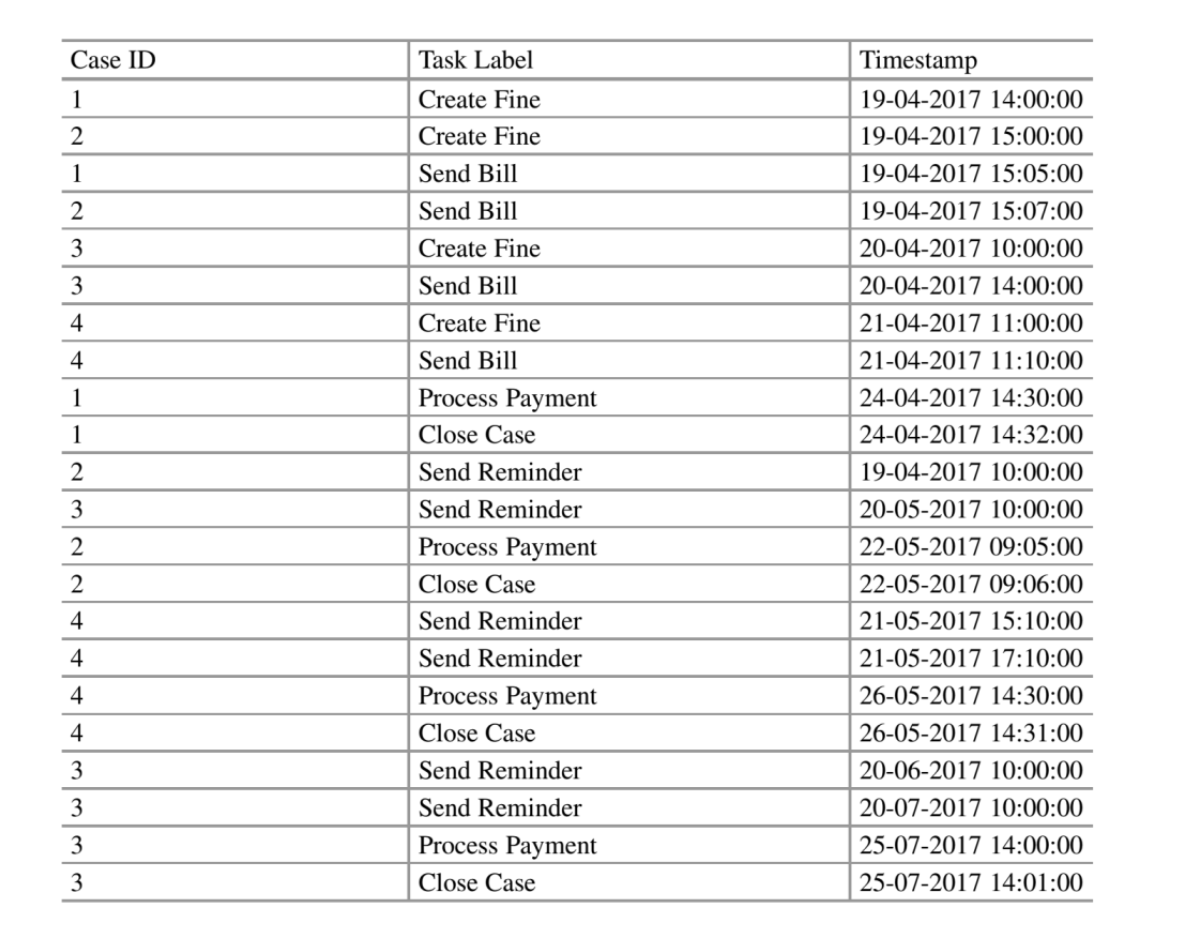

Case ID Task Label Create Fine Create Fine Send Bill Send Bill Create Fine Send Bill Create Fine Send Bill Process Payment Close Case Send Reminder Send Reminder Process Payment Close Case Send Reminder Send Reminder Process Payment Close Case Send Reminder Send Reminder Process Payment Close Case Timestamp 19-04-2017 14:00:00 19-04-2017 15:00:00 19-04-2017 15:05:00 19-04-2017 15:07:00 20-04-2017 10:00:00 20-04-2017 14:00:00 21-04-2017 11:00:00 21-04-2017 11:10:00 24-04-2017 14:30:00 24-04-2017 14:32:00 19-04-2017 10:00:00 20-05-2017 10:00:00 22-05-2017 09:05:00 22-05-2017 09:06:00 21-05-2017 15:10:00 21-05-2017 17:10:00 26-05-2017 14:30:00 26-05-2017 14:31:00 20-06-2017 10:00:00 20-07-2017 10:00:00 25-07-2017 14:00:00 25-07-2017 14:01:00
