Question: Exercise 2 2 columns are supporting a beam. The load on the beam is 5 0 l b f t The beam is 1 8

Exercise 2

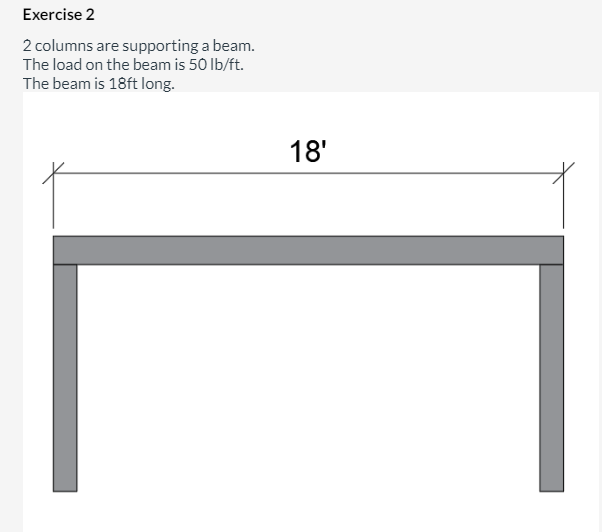

2 columns are supporting a beam.
The load on the beam is 50lbft
The beam is 18ft long.
find the load on the left column.
which units did you choose for the loads on the column?
Does the load acting on the right column have the same magnitude? yes or no?
Exercise 2 2 columns are supporting a beam. The

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
