Question: EXERCISE 2 . 3 1 . A differential manometer was connected with two points at the same level in a pipe containing liquid of specific

EXERCISE 2.3

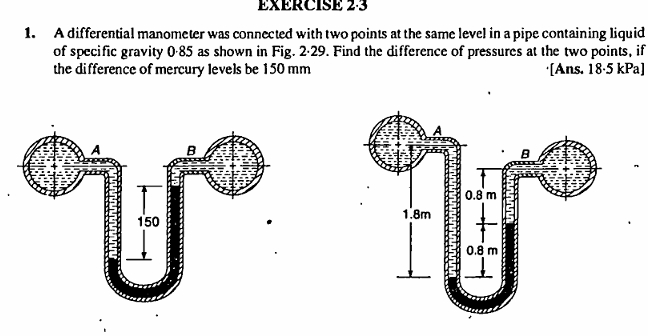

1. A differential manometer was connected with two points at the same level in a pipe containing liquid of specific gravity 0.85 as shown in Fig. 2.29. Find the difference of pressures at the two points, if the difference of mercury levels be 150 mm
[Ans.18.5 kPa\(]\)
EXERCISE 2 . 3 1 . A differential manometer was

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
