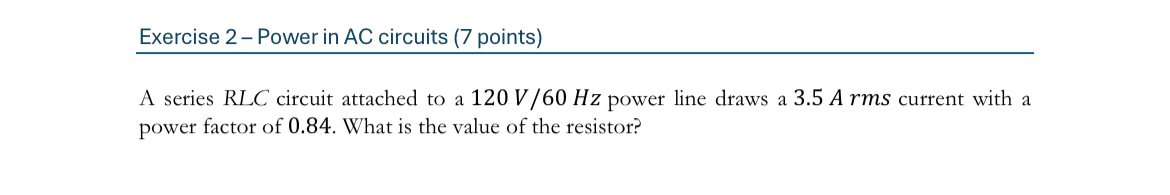

Question: Exercise 2 - Power in AC circuits ( 7 points ) A series RLC circuit attached to a 1 2 0 V 6 0 H

Exercise 2-Power in AC circuits (7 points)
A series RLC circuit attached to a 120V60Hz power line draws a 3.5 A rms current with a power factor of 0.84. What is the value of the resistor? Answer with explaintion in full sentinces
Exercise 2 - Power in AC circuits ( 7 points ) A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

A series RLC circuit attached to a 120 V/60 Hz power line draws a 2.4 A rms current with a power factor of 0.87. What is the value of the resistor?

Q:

A series RLC circuit attached to a 1 2 0 V / 6 0 Hz power line draws 2 . 0 0 A of current with a power factor of 0 . 8 7 0 .

Q:

A series RLC circuit attached to a 1 2 0 V 6 0 H z power line draws 3 . 4 0 A of current with a power factor of 0 . 8 8 0 .

Q:

10. [-11 Points] DETAILS SERPSE1O 32.5.0P.011. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A series AC circuit contains a resistor, an inductor of 220 mH, a capacitor of 5.40 uF, and a source with...

Q:

HW 7 help please ) of O zoom + 1. The series RLC circuit pictured below has an rms Voltage of 120 V. Use the information provided to determine: a. Capacitive Reactance b. Inductive Reactance c. The...

Q:

Could i please get some help with this, it would mean a lot, thank you. 10. (Knight Problem 32.51) A series RLC circuit consists of a 75 0 resistor, a 0.12 H inductor, and a 30 mF capacitor. It is...

Q:

Could i please get some help with this, it would mean a lot, thank you. Question 1 A current is being supplied from a source with a peak voltage of 26.0 V. What is the current that is being supplied...
