Question: Exercise 5. 15ptsPlease construct the NFA from the following regular expression: (a|b)a(a|b) , and then convert the NFA to DFA. (1) Construct the NFA (2)

Exercise 5. 15ptsPlease construct the NFA from the following regular expression: (a|b)*a(a|b)* , and then convert the NFA to DFA.

(1) Construct the NFA

(2) Convert NFA to DFA, fill the following the table, and draw the DFA diagra

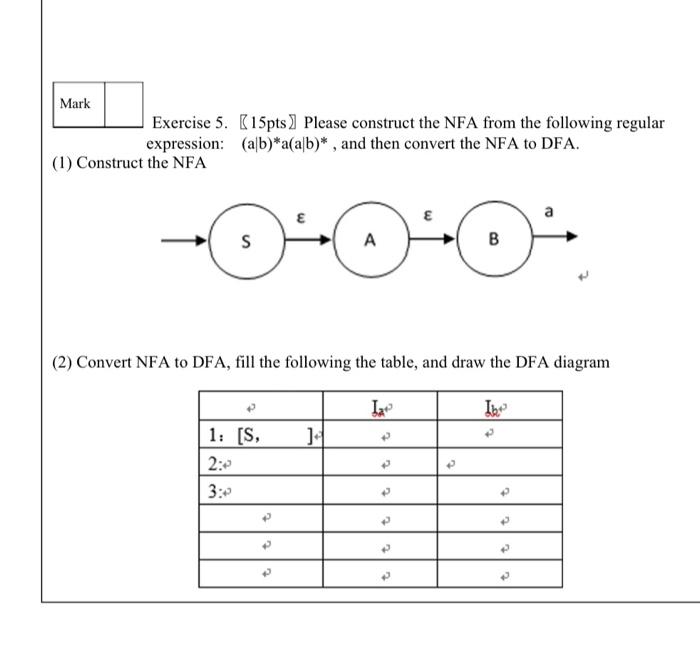

Mark Exercise 5. (15pts) Please construct the NFA from the following regular expression: (ab)*a(alb)* , and then convert the NFA to DFA. (1) Construct the NFA S A B (2) Convert NFA to DFA, fill the following the table, and draw the DFA diagram Ibu 14 t IN 1: [S, 2:- 3
