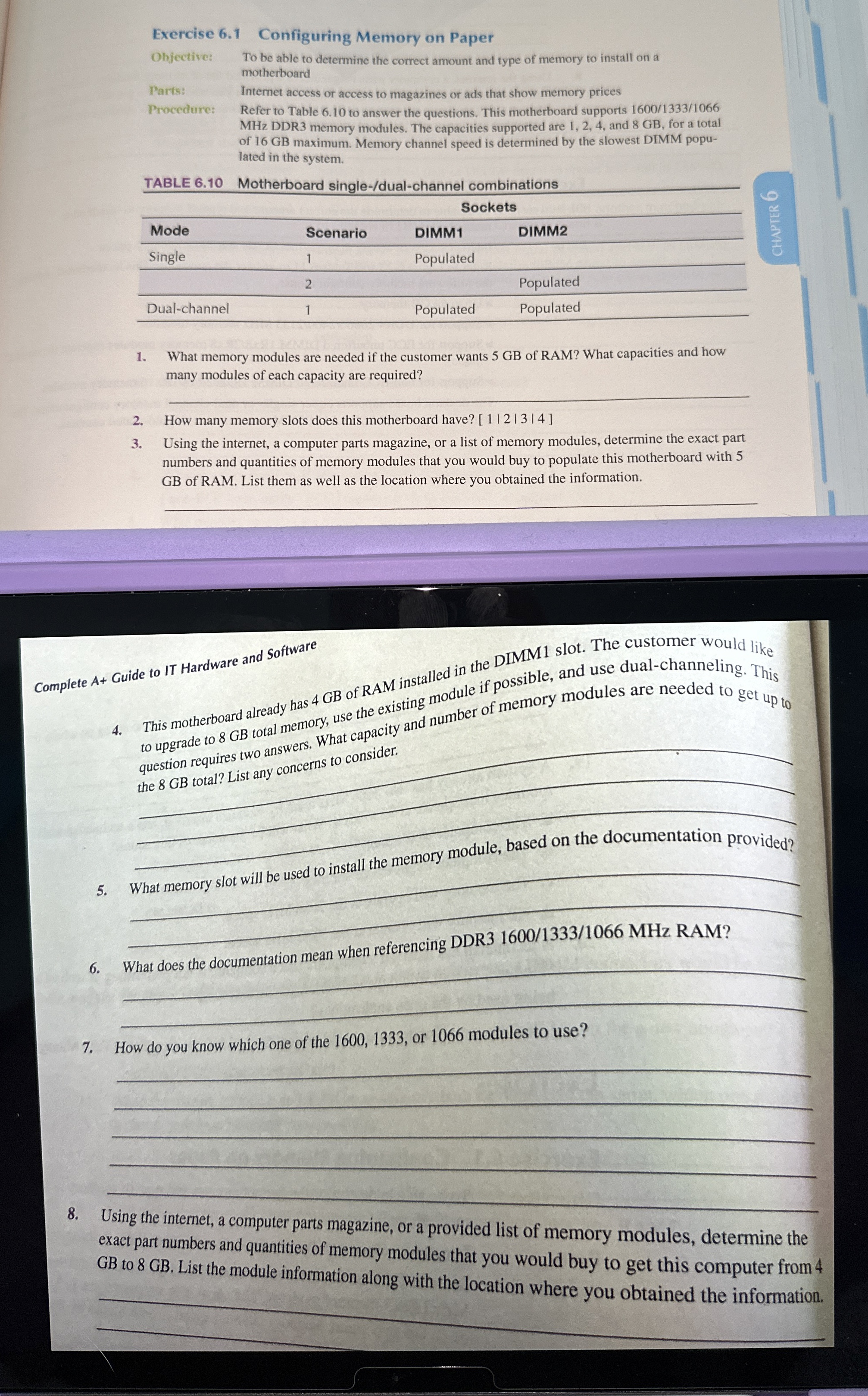

Exercise $6\mathrm{.}1$ Configuring Memory on Paper

Objective: To be able to determine the correct amount and type of memory to install on a motherboard

Parts: Internet access or access to magazines or ads that show memory prices

Procedure: Refer to Table $6\mathrm{.}10$ to answer the questions. This motherboard supports $1600/1333/1066MHz$ DDR $3$ memory modules. The capacities supported are $1,2,4,$ and $8GB,$ for a total of $16GB$ maximum. Memory channel speed is determined by the slowest DIMM populated in the system.

TABLE $6\mathrm{.}10$ Motherboard single$-/$dual$-$channel combinations

$\backslash$table$[[,$Sockets,$],[$Mode$,$Scenario,DIMM$1,$DIMM$2],[$Single$,1,$Populated,$],[,2,,$Populated$],[$Dual$-$channel,$1,$Populated,Populated$]]$

What memory modules are needed if the customer wants $5GB$ of RAM? What capacities and how many modules of each capacity are required?

How many memory slots does this motherboard have? $[1|2|3|4||]$

Using the internet, a computer parts magazine, or a list of memory modules, determine the exact part numbers and quantities of memory modules that you would buy to populate this motherboard with $5GB$ of RAM. List them as well as the location where you obtained the information.

Complete A$+$ Guide to IT Hardware and Software

$4.$ This motherboard already has $4GB$ of RAM installed in the DIMM$1$ slot. The customer would like to upgrade to $8GB$ total memory, use the existing module if possible, and use duales are needed to gis question requires two answers. What capacity and number of memory modules are so the $8GB$ total? List any concerns to consider. $q,$

$q,$ Wemery slot will be used to install the memory module, based on the documentation provided?

$5.$ What memory slot will be used to ind $q,$ What does the documentation mean when referencing DDR$3\frac{1600}{1333}\frac{?}{1066MHz}$ RAM? $q,$

$q,$

$7.$ How do you know which one of the $1600,1333,$ or $1066$ modules to use? $q,$

$q,$

$q,$

$q,$

$q,8.$ Using the internet, a computer parts magazine, or a provided list of memory modules, determine the exact part numbers and quantities of memory modules that you would buy to get this computer from $4GB$ to $8GB.$ List the module information along with the location where you obtained the information. $q,$
