Question: Exercise 7: Determine the truth table and the minimized Boolean equation for the function performed by the following circuit with inputs {A,B,C,D} and output {F}.

Exercise 7: Determine the truth table and the minimized Boolean equation

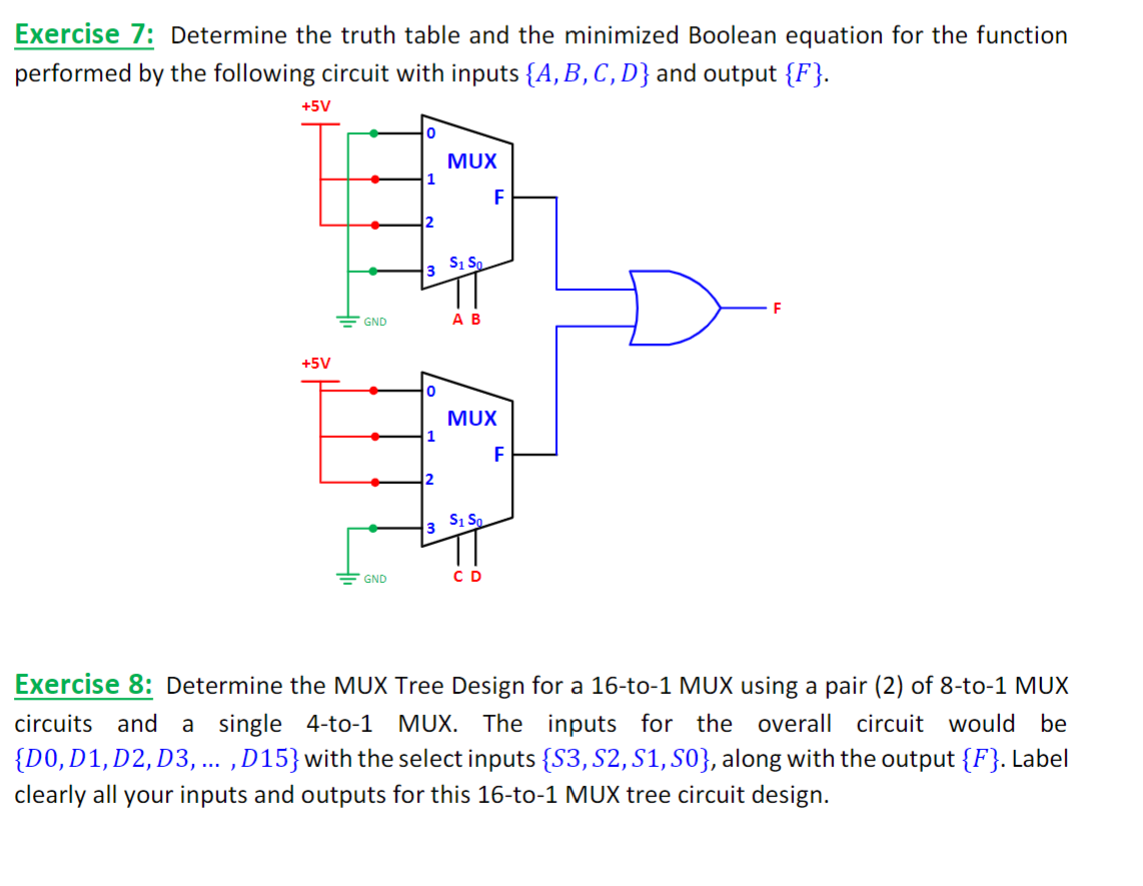

Exercise 7: Determine the truth table and the minimized Boolean equation for the function performed by the following circuit with inputs {A,B,C,D} and output {F}. Exercise 8: Determine the MUX Tree Design for a 16-to-1 MUX using a pair (2) of 8-to-1 MUX circuits and a single 4-to-1 MUX. The inputs for the overall circuit would be {D0,D1,D2,D3,,D15} with the select inputs {S3,S2,S1,S0}, along with the output {F}. Label clearly all your inputs and outputs for this 16-to-1 MUX tree circuit design

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
