Question: EXERCISE 9 . 3 . 6 ? ( a ) Determine the impedance Z L for maximum average power transfer and the value of the

EXERCISE
9.3.6
?

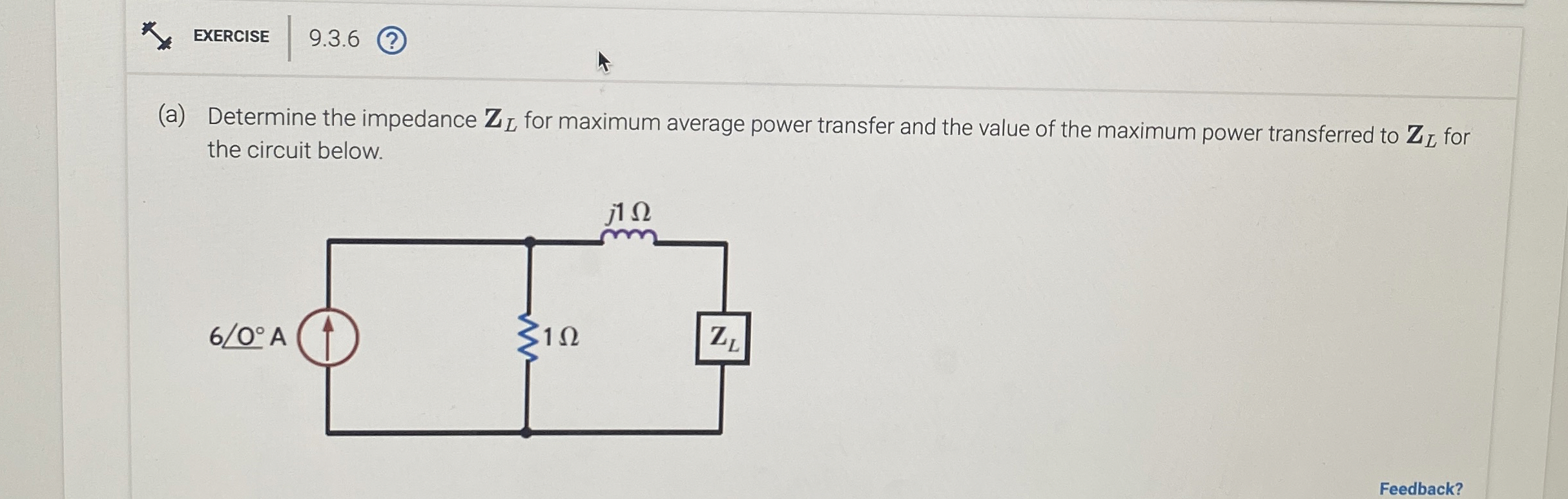

(a) Determine the impedance ZL for maximum average power transfer and the value of the maximum power transferred to ZL for the circuit below.
EXERCISE 9 . 3 . 6 ? ( a ) Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
