Question: Exercise If cables BD and BC can withstand a maximum tensile force of 2 0 kN , determine the maximum mass of the girder that

Exercise

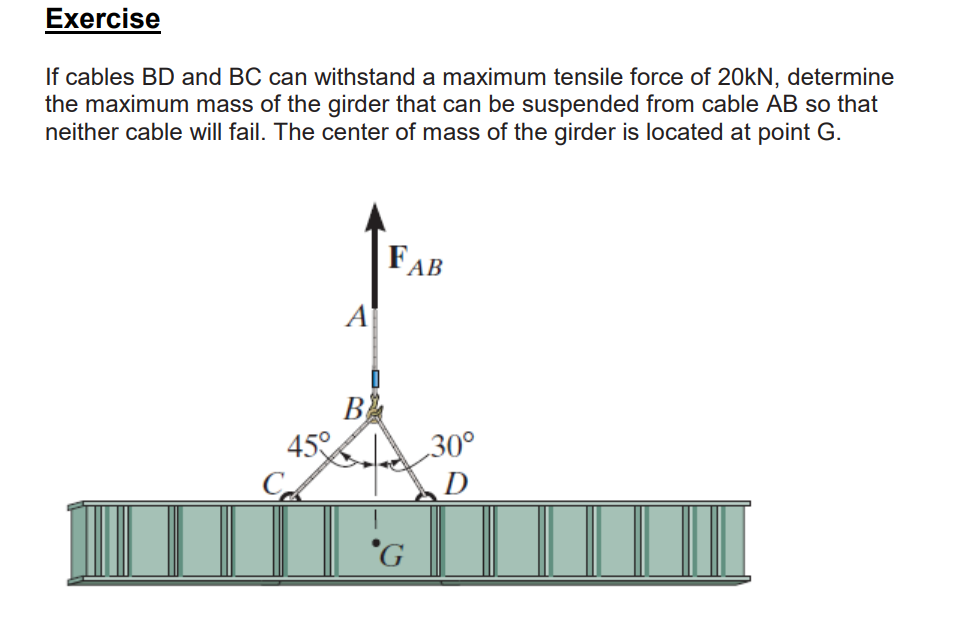

If cables BD and BC can withstand a maximum tensile force of 20 kN , determine
the maximum mass of the girder that can be suspended from cable AB so that
neither cable will fail. The center of mass of the girder is located at point G.
Exercise If cables BD and BC can withstand a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
