Question: Exercise l: Use the table below to answer the question and draw AON diagram. (5 marks) Preceding Activity Activity Start D A F E G

Exercise l: Use the table below to answer the

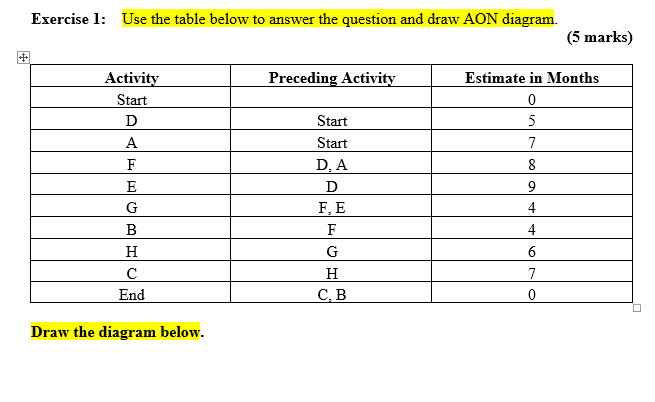

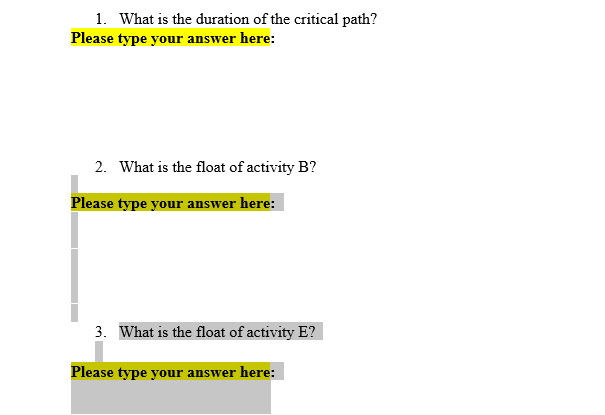

Exercise l: Use the table below to answer the question and draw AON diagram. (5 marks) Preceding Activity Activity Start D A F E G B H End Start Start D, A D F, E F G H C. B Estimate in Months 0 5 7 8 9 4 4 6 7 0 Draw the diagram below. 1. What is the duration of the critical path? Please type your answer here: 2. What is the float of activity B? Please type your answer here: 3. What is the float of activity E? Please type your answer here

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
