Question: Exercise No . 3 Map the following relational schema into an ER schema. Figure 1 : EER Diagram of a Small Airport

Exercise No.3
Map the following relational schema into an ER schema.

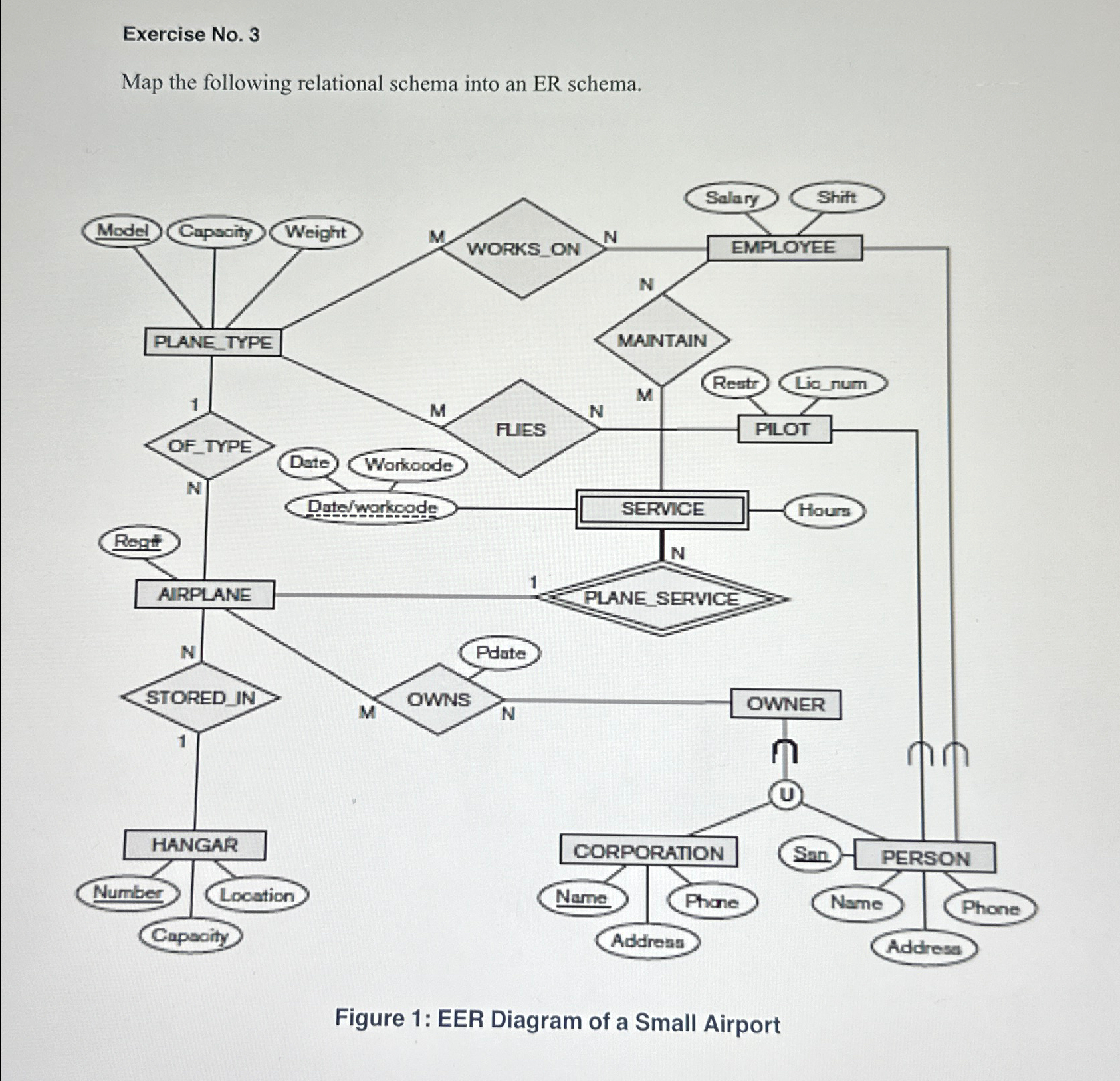

Figure 1: EER Diagram of a Small Airport
Exercise No.3 Map the following relational schema into an ER schema.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
