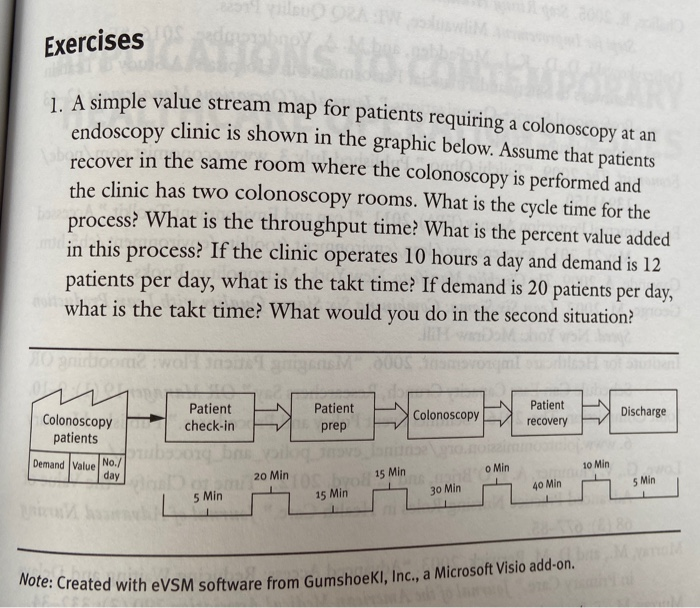

Exercises A simple value stream map for patients requiring a colonoscopy at an endoscopy clinic is shown in the graphic below. Assume that patients recover in the same room where the colonoscopy is performed and the clinic has two colonoscopy rooms. What is the cycle time for the process? What is the throughput time? What is the percent value added in this process? If the clinic operates 10 hours a day and demand is 12 patients per day, what is the takt time? If demand is 20 patients per day, what is the takt time? What would you do in the second situation? D E SIVI 0005 Patient check-in Patient prep prep check-in Colonoscopy colonoscopy reciente Patient recovery Discharge Discharge Colonoscopy patients Demand value No.:/ 10 Min o Min 20 Min 15 Min 40 Min 5 Min 30 Min 15 Min 5 Min Note: Created with eVSM software from Gumshoeki, Inc., VSM software from Gumshoeki, Inc., a Microsoft Visio add-on
