Question: Explain how to solve 8 - 5 . Determine the vertical displacement of point A . Assume the members are pin connected at their ends.

Explain how to solve

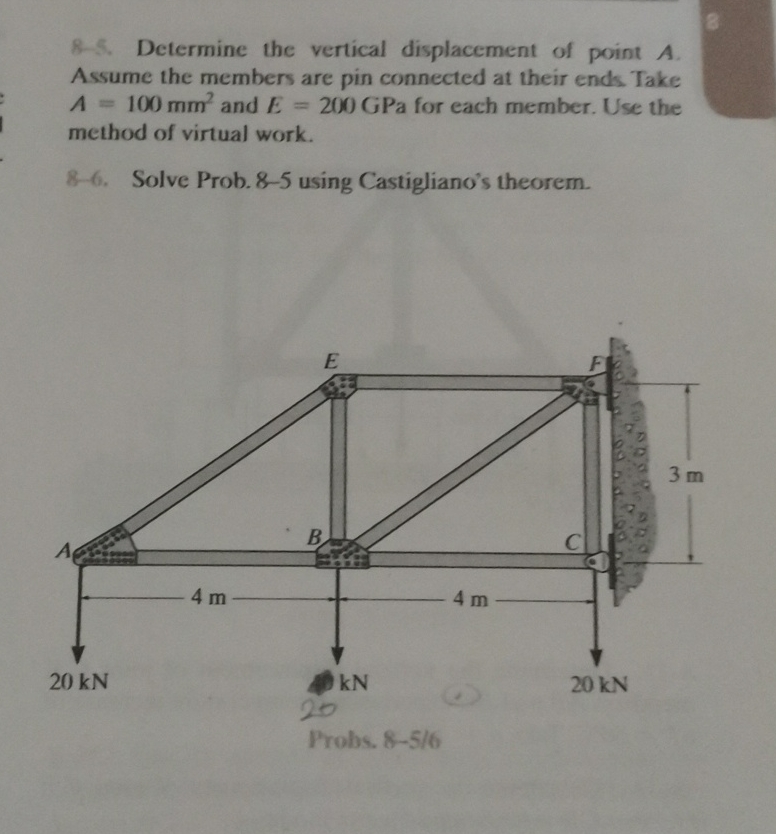

8-5. Determine the vertical displacement of point A. Assume the members are pin connected at their ends. Take A=100mm2 and E=200GPa for each member. Use the method of virtual work.
Explain how to solve 8 - 5 . Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the vertical displacement of point A. Assume the members are pin connected at their ends. Take A = 100 mm 2 and E = 200 GPa for each member. Use the method of virtual work. 10:00 tal TON...

Q:

Solve Prob. 813 using Castiglianos theorem. Data from Prob. 813 Determine the vertical displacement of point A. Assume the members are pin connected at their ends. Take A = 100 mm 2 and E = 200 GPa...

Q:

Determine the vertical displacement of joint A. Assume the members are pin connected at their end points. Take A = in 2 and E = 29 (10 3 ) for each member. Using Castiglianos theorem. 8 ft AO B - 8...

Q:

Determine the vertical displacement of joint A. Assume the members are pin connected at their end points. Take A = in 2 and E = 29 (10) 3 for each member. Use the method of virtual work. 8 ft AO B -...

Q:

Determine the vertical displacement of joint A. Assume the members are pin connected at their end points. Take A = 3 in 2 and E = 29(10 3 ) ksi for each member. Use the method of virtual work. 8 ft A...

Q:

Determine the vertical displacement of joint C. Assume the members are pin connected at their end points. Take A = 200 mm 2 and E = 200 GPa for each member. Use the method of virtual work. 4 m A E 4...

Q:

Solve Prob. 960 using Castiglianos theorem The frame is subjected to the load of 5 k. Determine the vertical displacement at C. Assume that the members are pin connected at A, C, and E, and fixed...

Q:

Solve Prob. 81 using Castiglianos theorem. Data from Prob. 81 Determine the vertical displacement of joint A. Assume the members are pin connected at their end points. Take A = 3 in 2 and E = 29(10 3...

Q:

The frame is subjected to the load of 5 k. Determine the vertical displacement at C. Assume that the members are pin connected at A, C, and E, and fixed connected at the knee joints B and D. EI is...

Q:

Solve Prob. 815 using Castiglianos theorem. Data from Prob. 815 Determine the vertical displacement of joint C. Assume the members are pin connected at their end points. Take A = 200 mm 2 and E = 200...
