Question: F 1 0 - 7 . The solid 5 0 - mm - diameter shaft is subjected to the torques applied to the gears. Determine

F10-7. The solid 50-mm-diameter shaft is subjected to
the torques applied to the gears. Determine the absolute
maximum shear stress in the shaft.
Prob. F10-7

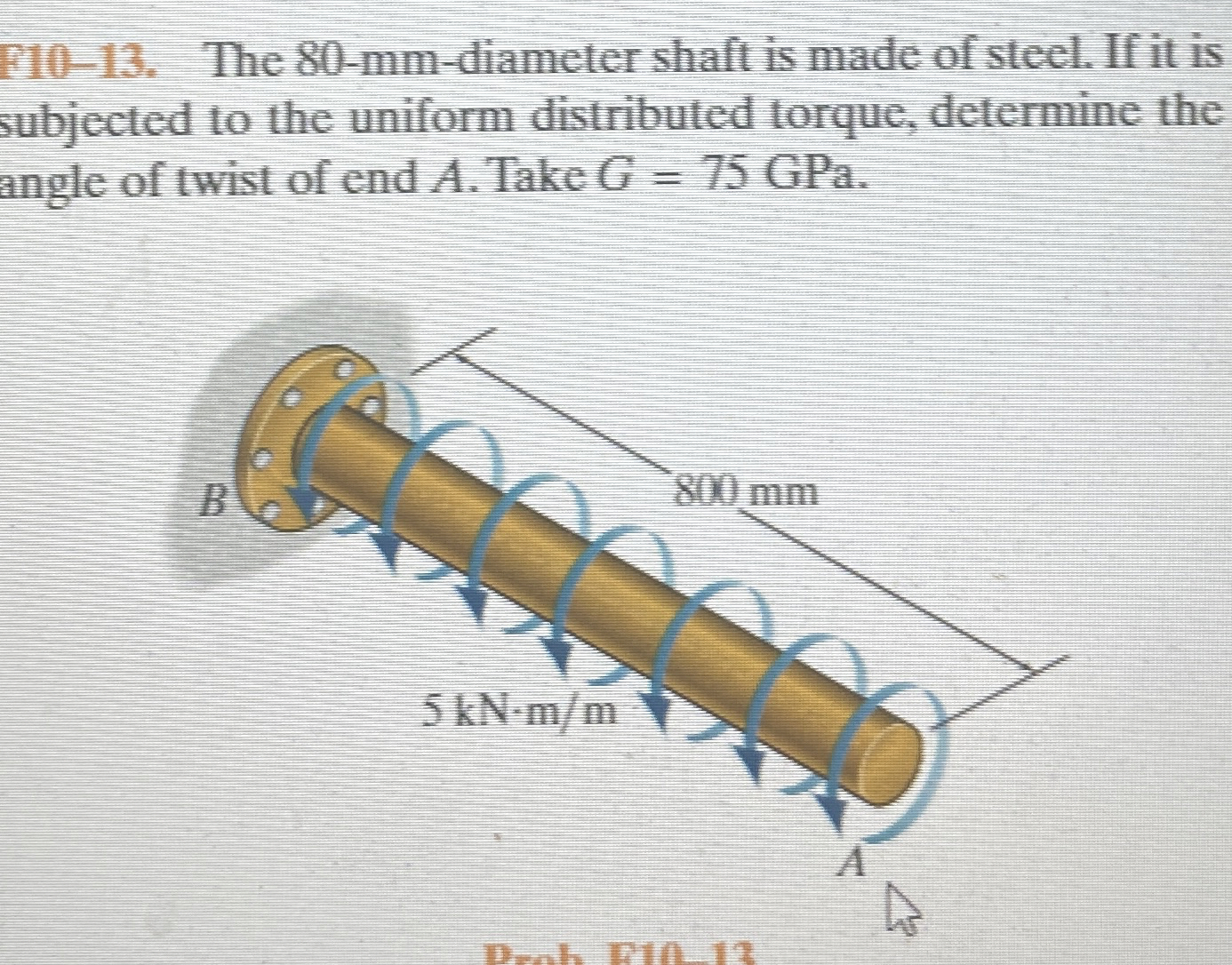

F10-13. The 80-mm-diameter shaft is made of steel. If it is
subjected to the uniform distributed torque, determine the
angle of twist of end A. Take G=75GPa.
F 1 0 - 7 . The solid 5 0 - mm - diameter shaft

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
