Question: F 1 - 2 2 . The pin is made of a material having a failure shear stress of f a i l = 1

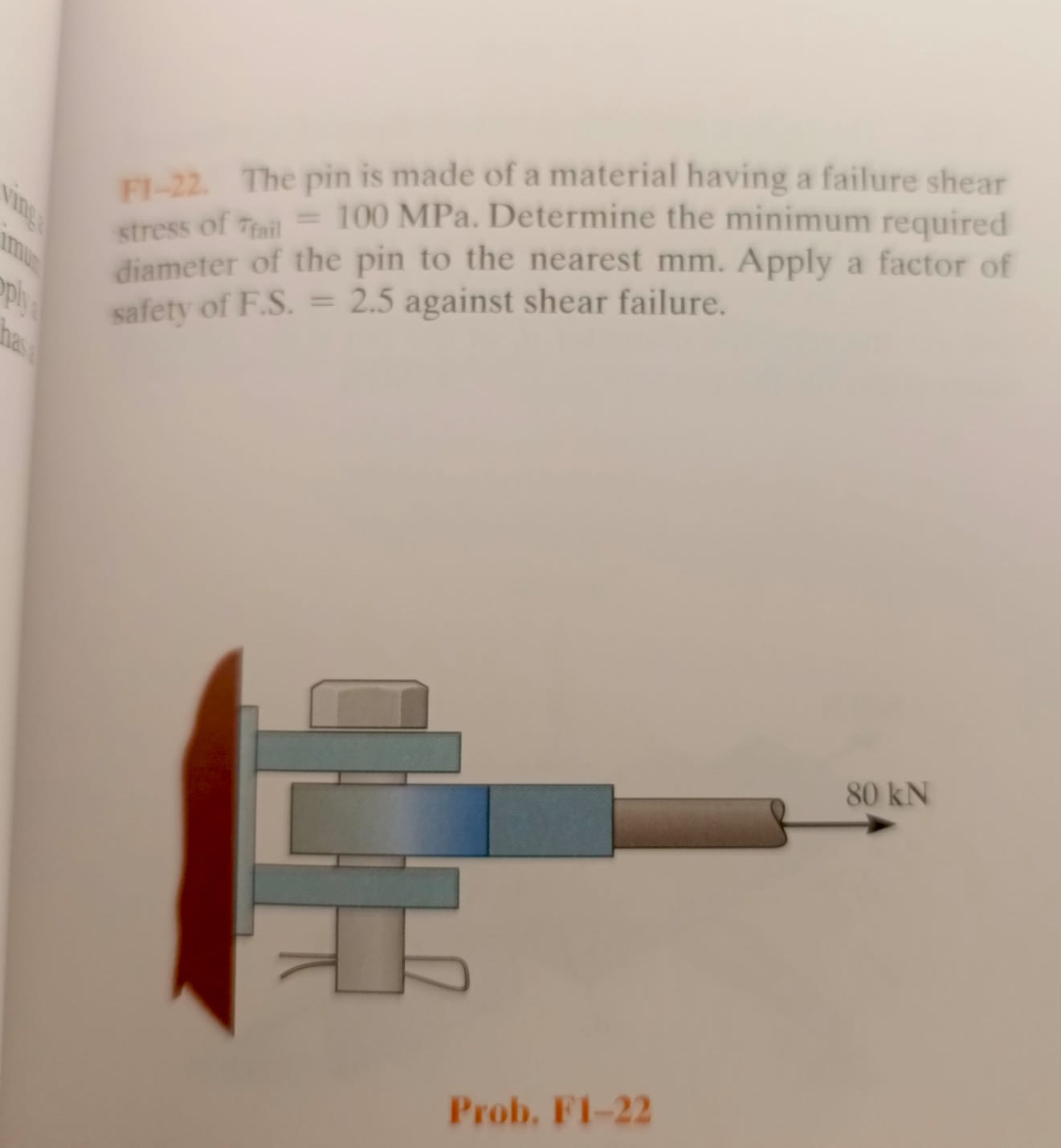

F1-22. The pin is made of a material having a failure shear stress of fail=100MPa. Determine the minimum required diameter of the pin to the nearest mm. Apply a factor of safety of F.S.=2.5 against shear failure.
Prob. F1-22
F 1 - 2 2 . The pin is made of a material having

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
