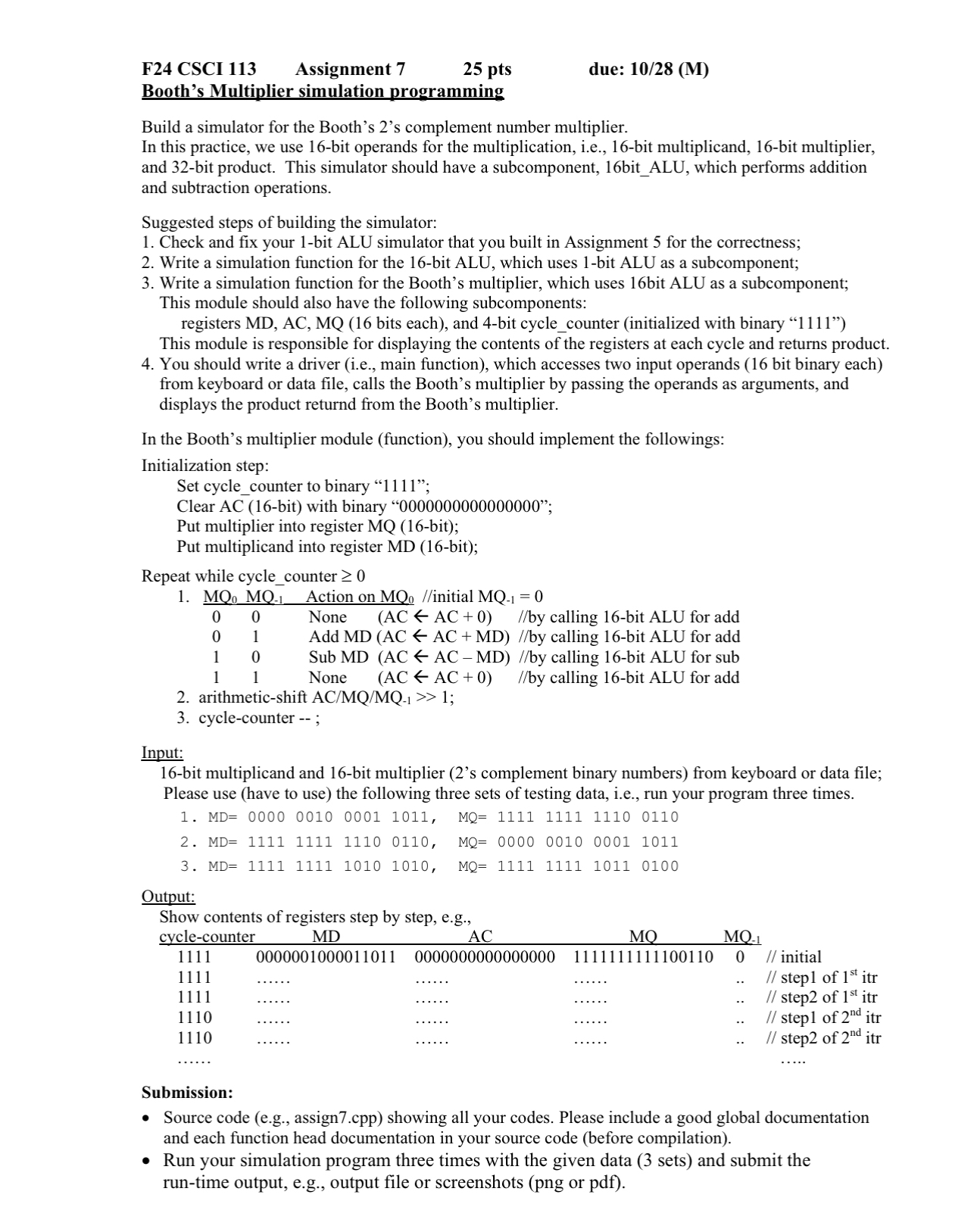

F$24$ CSCI $113$ Assignment $7,25$ pts due: $10/28($M$)$

Booth's Multiplier simulation programming

Build a simulator for the Booth's $2\text{'}$s complement number multiplier.

In this practice, we use $16-$bit operands for the multiplication, i$.$e$.,16-$bit multiplicand, $16-$bit multiplier, and $32-$bit product. This simulator should have a subcomponent, $16$bit$\_$ALU, which performs addition and subtraction operations.

Suggested steps of building the simulator:

Check and fix your $1-$bit ALU simulator that you built in Assignment $5$ for the correctness;

Write a simulation function for the $16-$bit ALU, which uses $1-$bit ALU as a subcomponent;

Write a simulation function for the Booth's multiplier, which uses $16$ bit ALU as a subcomponent; This module should also have the following subcomponents:

registers MD$,$ AC$,$ MQ $(16$ bits each$),$ and $4-$bit cycle$\_$counter $($initialized with binary $"1111")$

This module is responsible for displaying the contents of the registers at each cycle and returns product.

You should write a driver $($i$.$e$.,$ main function$),$ which accesses two input operands $(16$ bit binary each$)$ from keyboard or data file, calls the Booth's multiplier by passing the operands as arguments, and displays the product returnd from the Booth's multiplier.

In the Booth's multiplier module $($function$),$ you should implement the followings:

Initialization step:

Set cycle$\_$counter to binary $"1111"$;

Clear AC $(16-$bit$)$ with binary $"0000000000000000"$;

Put multiplier into register MQ $(16-$bit$)$;

Put multiplicand into register MD $(16-$bit$)$;

Repeat while cycle$\_$counter $0$

$M{Q}_{0}M{Q}_{-1},$ Action on $M\frac{Q_0}{\frac{?}{?}}$ initial $M{Q}_{-1}=0$

$01,1,$ Add MD $($AC larrAC$+MD)//$by calling $16-$bit ALU for add

$10,$ Sub MD $($AC larrAC$-MD)//$by calling $16-$bit ALU for sub

$11$ None $)//$by calling $16-$bit ALU for add

arithmetic$-$shift $A\frac{C}{M}\frac{Q}{M}{Q}_{-1}>1$;

cycle$-$counter $--$ ;

Input:

$16-$bit multiplicand and $16-$bit multiplier $(2\text{'}$s complement binary numbers$)$ from keyboard or data file; Please use $($have to use$)$ the following three sets of testing data, i$.$e$.,$ run your program three times.Output:Show contents of registers step by step, e$.$g$.,$

Submission:

Source code $($e$.$g$.,$ assign$7.$cpp$)$ showing all your codes. Please include a good global documentation and each function head documentation in your source code $($before compilation$).$

Run your simulation program three times with the given data $(3$ sets$)$ and submit the run$-$time output, e$.$g$.,$ output file or screenshots $($png or pdf$).$
