Question: Question 22 (5 marks) Figure 10 3 kN/m Fl The beam shown in Figure 10 is without mass. Fl = 20 kN at 600

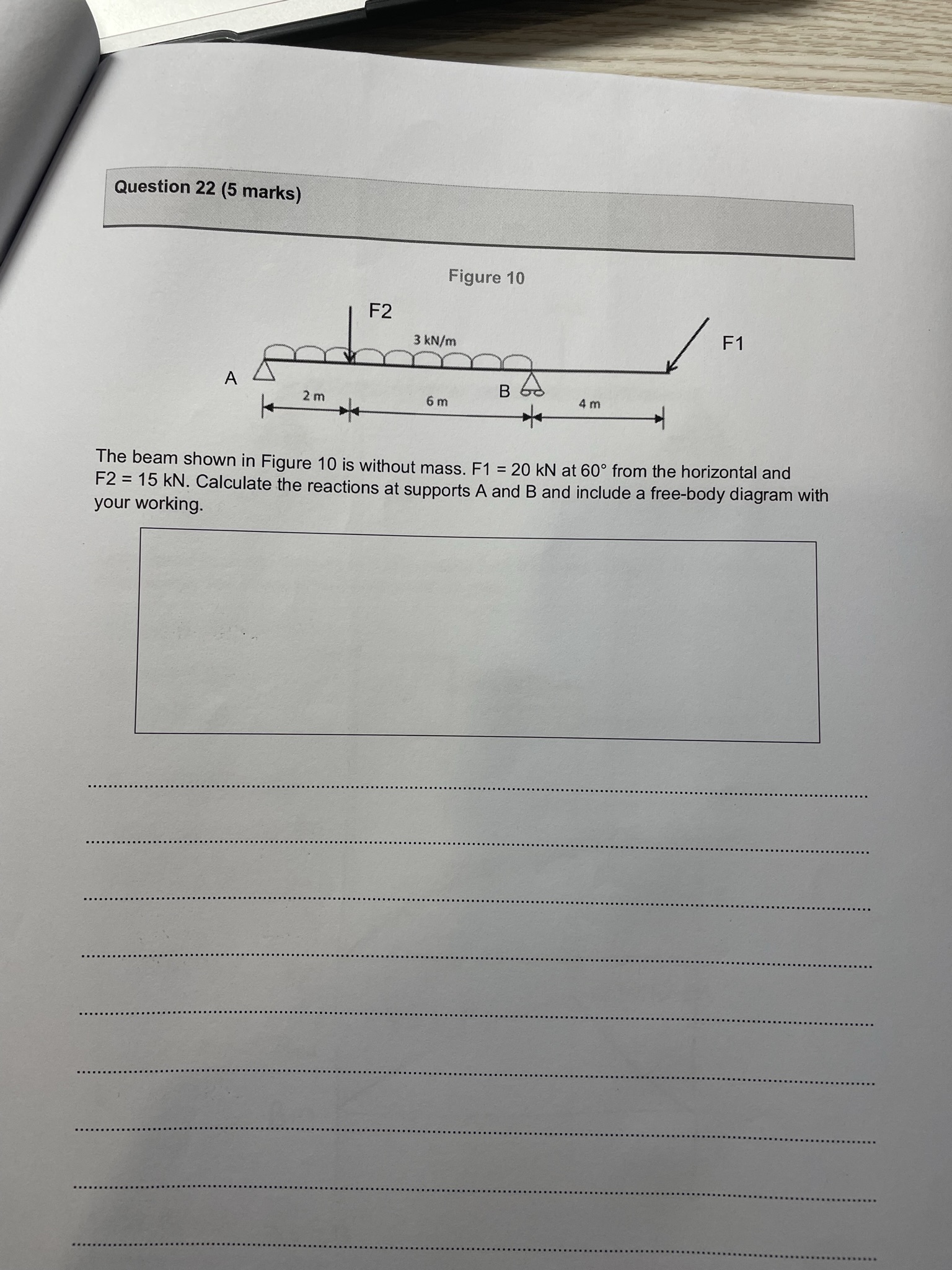

Question 22 (5 marks) Figure 10 3 kN/m Fl The beam shown in Figure 10 is without mass. Fl = 20 kN at 600 from the horizontal and F2 = 15 kN. Calculate the reactions at supports A and B and include a free-body diagram with your working.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
