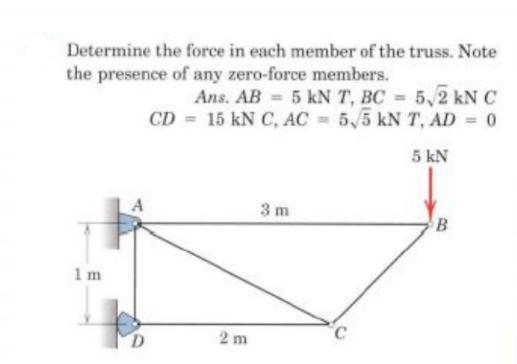

Question: Determine the force in each member of the truss. Note the presence of any zero-force members. Ans. AB - 5kN T, BC - 5,ikNC

Determine the force in each member of the truss. Note the presence
of any zero-force members. Ans. AB - 5kN T, BC - 5,ikNC

Determine the force in each member of the truss. Note the presence of any zero-force members. Ans. AB - 5kN T, BC - 5,ikNC CD - 15kNC,AC - T, AD = O

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mathematics Questions!

Q:

16.01 0 I LIE1 .1 99% Selesai + DF = 0.60IL DE = 1.020L OG = CG = R Joint D 182 Chapter 4 Structures PROBLEMS 4/4 Determine the force in each member of the truss. Note the presence of any zero-force...
