Question: F 4 - 7 . Determine the internal shear and moment in the beam as a function of x . Prob. F 4 - 7

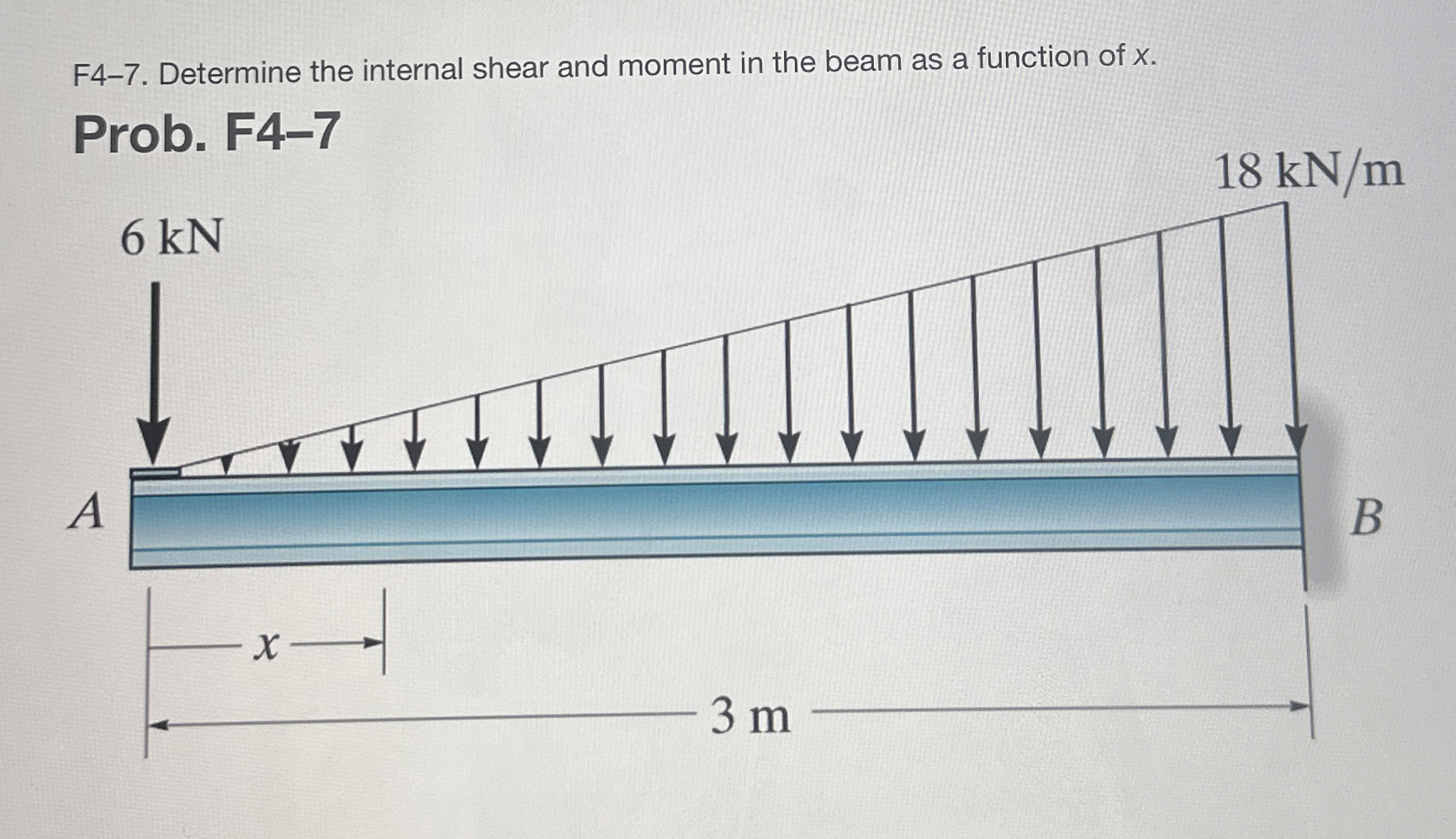

F4-7. Determine the internal shear and moment in the beam as a function of x.
Prob. F4-7
F 4 - 7 . Determine the internal shear and moment

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
