Question: F 5 - 4 . Determine the maximum shear stress in the 4 0 - m m - diameter shaft. Prob. F 5 - 4

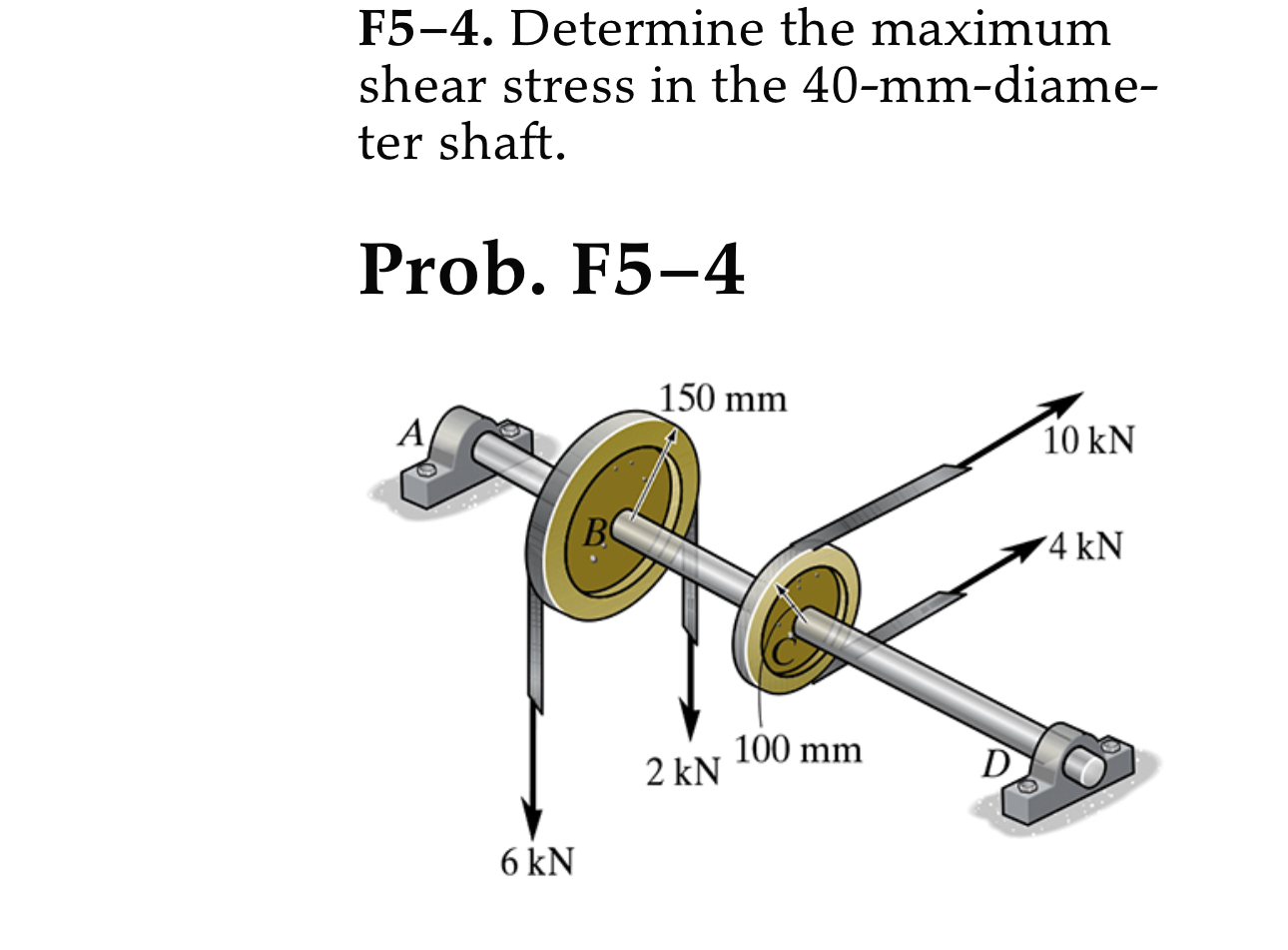

F5-4. Determine the maximum shear stress in the 40-mm-diameter shaft.
Prob. F5-4
F 5 - 4 . Determine the maximum shear stress in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
