Question: F 6 - 1 1 ) Determine the force in members GF , GD , and CD of the truss. State if the members are

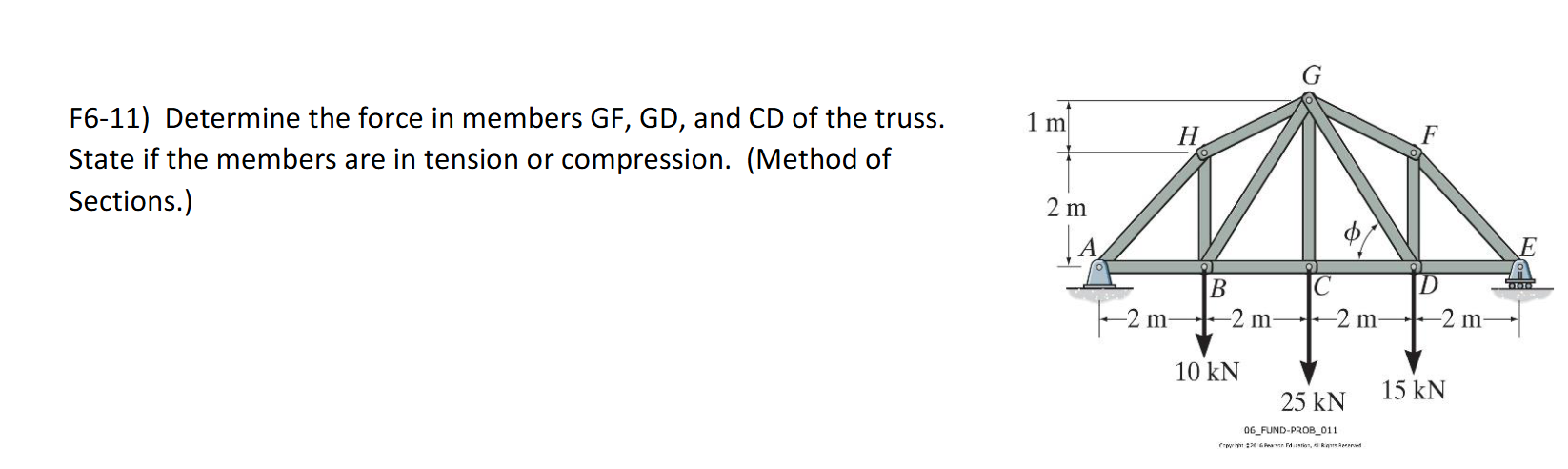

F6-11) Determine the force in members GF, GD, and CD of the truss. State if the members are in tension or compression. (Method of Sections.)
F 6 - 1 1 ) Determine the force in members GF ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
