Question: F 6 - 1 2 . Determine the force in members D C , H I , and J I of the truss. State if

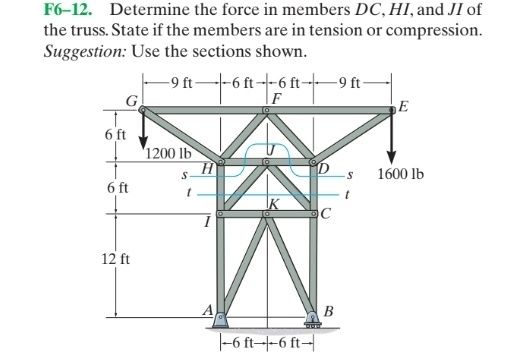

F6-12. Determine the force in members DC,HI, and JI of the truss. State if the members are in tension or compression. Suggestion: Use the sections shown.
If you can please draw the FBD
F 6 - 1 2 . Determine the force in members D C ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
