Question: F 6 - 7 . Determine the force in members B C , C F , and F E . State if the members are

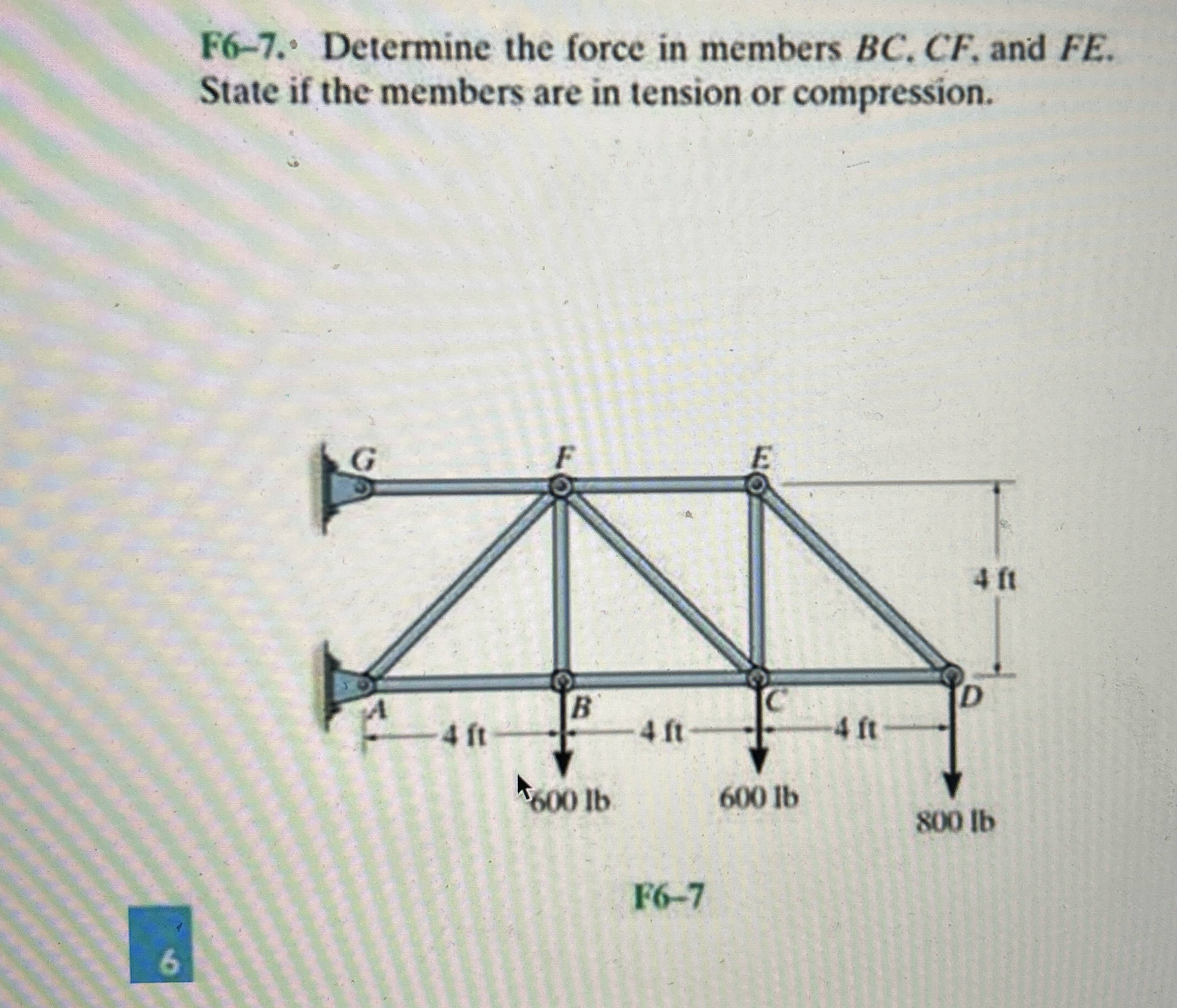

F6-7. Determine the force in members BC,CF, and FE.
State if the members are in tension or compression. Draw all free body diagrams.
F 6 - 7 . Determine the force in members B C , C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
