Question: F . Fill - in the truth table for the below circuit. ( Show your steps on drawing ) [ 2 pts ] table

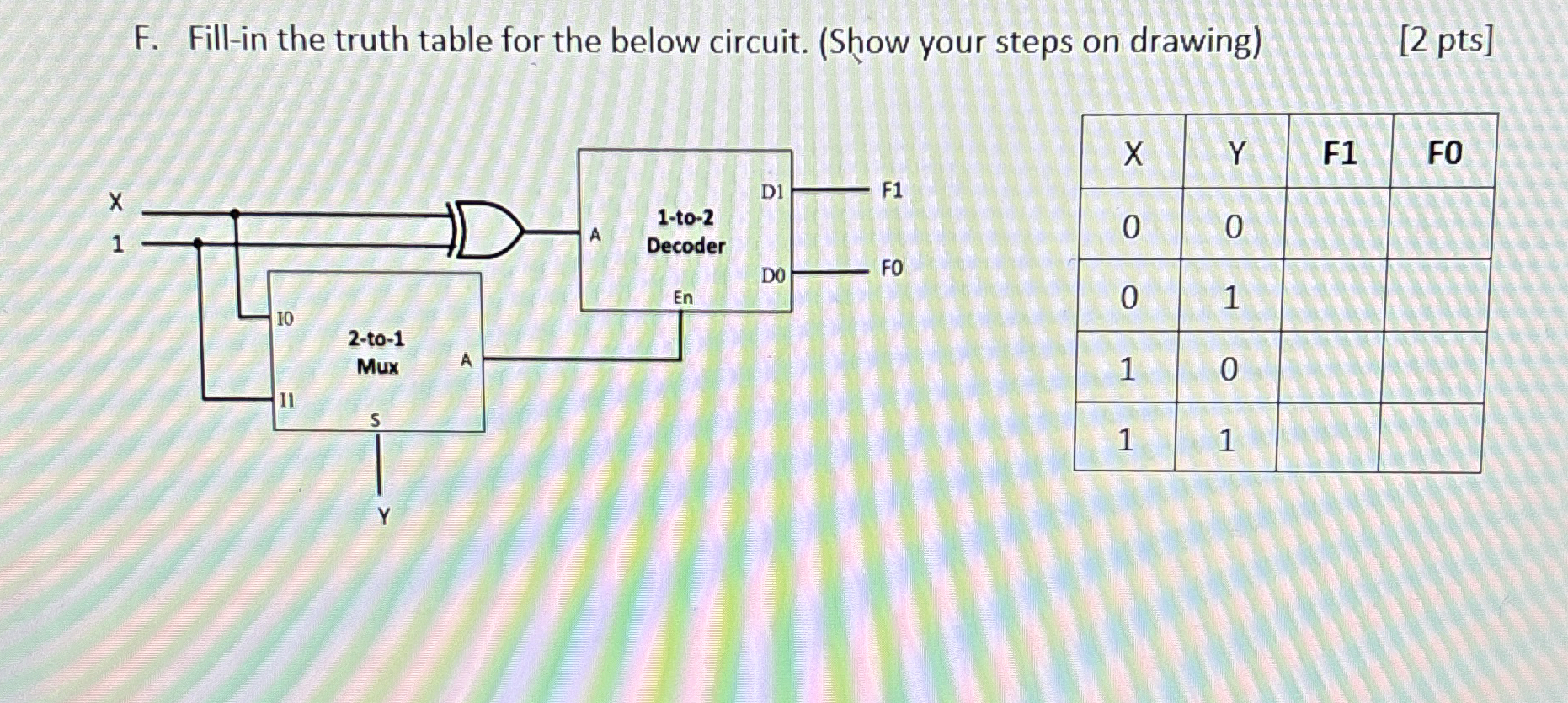

F. Fill-in the truth table for the below circuit. (Show your steps on drawing)
[2 pts]
\table[[x,Y,F1,FO],[0,0,,],[0,1,,],[1,0,,],[1,1,,]]
F . Fill - in the truth table for the below

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
