Facility Planning and management

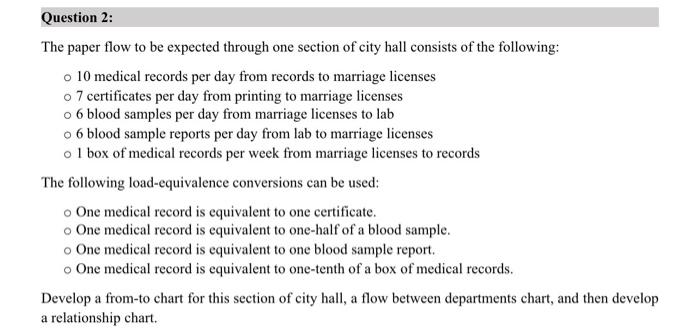

The paper flow to be expected through one section of city hall consists of the following: 10 medical records per day from records to marriage licenses 7 certificates per day from printing to marriage licenses 6 blood samples per day from marriage licenses to lab 6 blood sample reports per day from lab to marriage licenses 1 box of medical records per week from marriage licenses to records The following load-equivalence conversions can be used: One medical record is equivalent to one certificate. One medical record is equivalent to one-half of a blood sample. One medical record is equivalent to one blood sample report. One medical record is equivalent to one-tenth of a box of medical records. Develop a from-to chart for this section of city hall, a flow between departments chart, and then develop a relationship chart
