Fall $2024$

A $100\mathrm{.}06$ ft $.$ tape with nominal value of $100$ ft is used for measurement of a line $($ A to B $)$ in two

segments. Segment $1$ was measured in weather temperature of $43F$ and found to be $90$ ft $.$ Segment

$2$ was measured in standard weather temperature $(68F)$ and found to be $72\mathrm{.}5$ ft $.$ What is the

corrected length between A to B$?$

Note: Keep maximum of five decimals in your calculations.

Note: Find temperature and tape length corrections for each segment before answering multiple

choice questions.

Based on question above, answer questions $1$ to $5.$

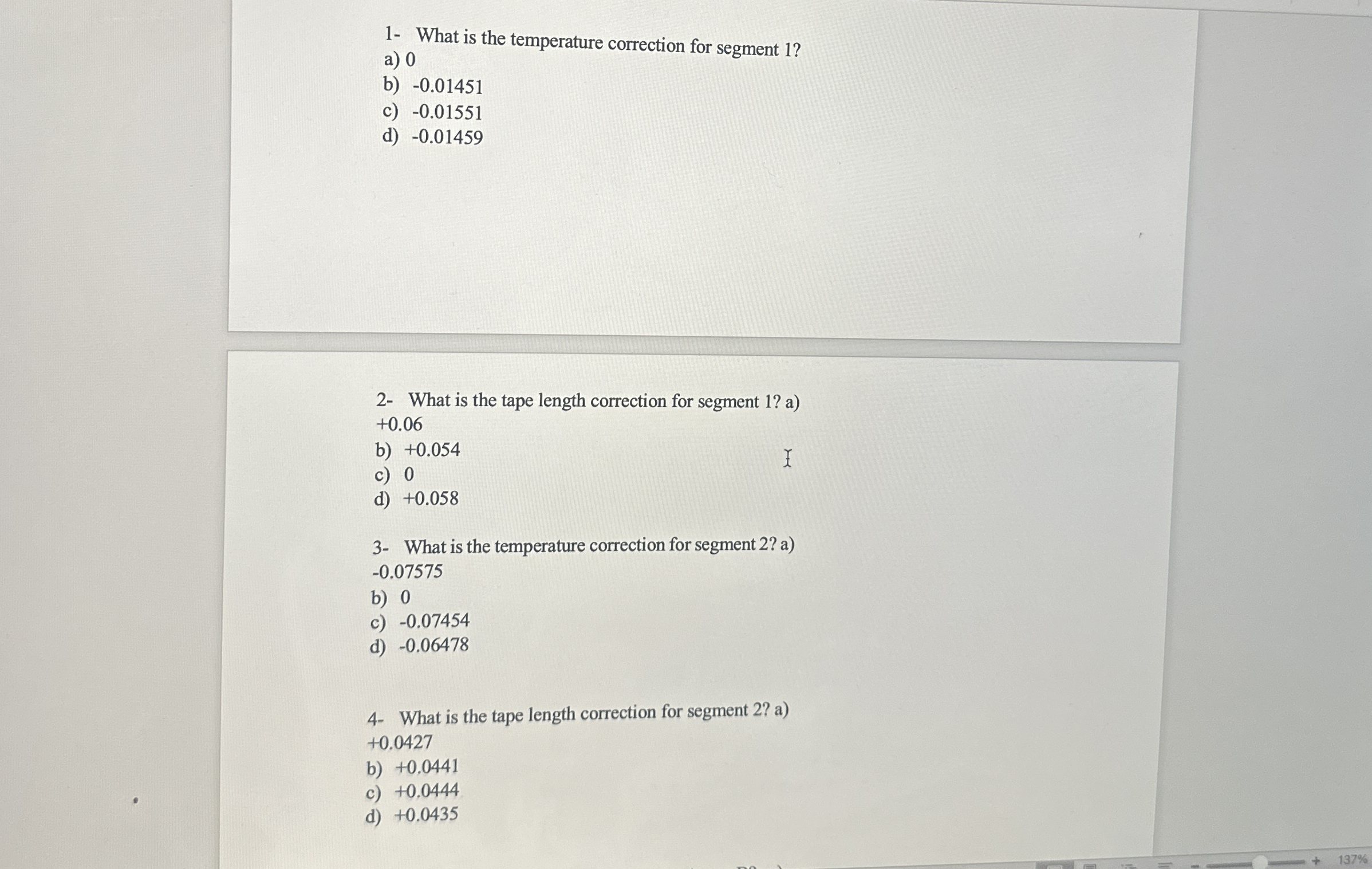

$1-$ What is the temperature correction for segment $1?$

a$)0$

b$)-0\mathrm{.}01451$

c$)-0\mathrm{.}01551$

d$)-0\mathrm{.}01459$

$2-$ What is the tape length correction for segment $1?$ a$)$

$+0\mathrm{.}06$

b$)+0\mathrm{.}054$

c$)0$

d$)+0\mathrm{.}058$

$3-$ What is the temperature correction for segment $2?$ a$)$

$-0\mathrm{.}07575$

b$)0$

c$)-0\mathrm{.}07454$

d$)-0\mathrm{.}06478$

$4-$ What is the tape length correction for segment $2?$ a$)$

$+0\mathrm{.}0427$

b$)+0,0441$

c$)+0,0444$

d$)+0\mathrm{.}0435$
