Question: Fall 2018 System Decode xpand the memory system above to a total address space of Add a second decoder to decode for devices. For the

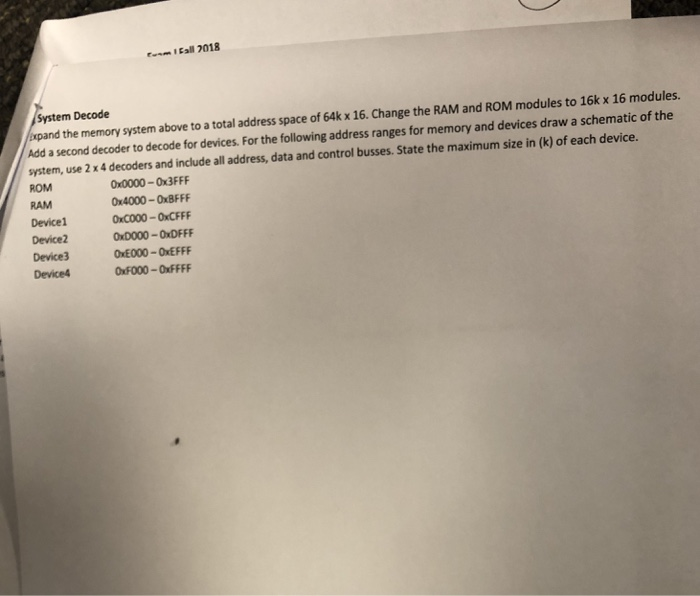

Fall 2018 System Decode xpand the memory system above to a total address space of Add a second decoder to decode for devices. For the following address ranges for memory and devices draw a schematic of the system, use 2 x4 decoders and include all address, data and control busses. State the maximum size in (k) of each device. ROM RAM Device1 Device2 Device3 Device4 64k x 16. Change the RAM and ROM modules to 16k x 16 modules. 0x0000-0x3FFF 0x4000-OxBFFF OxC000-OxCFF OxD000-OxDFFF OxE000-0xEFFF OxF000-OxFFFF

Step by Step Solution

There are 3 Steps involved in it
