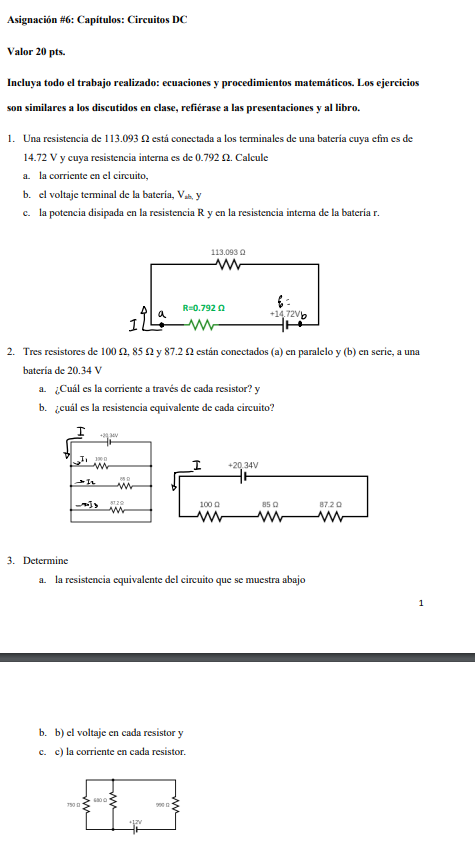

\fAssignment #6: Chapters: DC Circuits Valor 20 pts. Include all work done: equations and mathematical procedures. The exercises are similar to those discussed in class, refer to the presentations and the book. 1. A resistance of 112.093 N is connected to the terminals of a battery whose effim is 14.72 V and whose internal resistance is 0.792 E. calculate to the current in the circuit, b. the battery terminal voltage, Vab, and e. the power dissipated In the resistor R and In the Intamal resistance of the battery r. R-0.792 0 1il +14,72VIs 2. Three resistors of 100 82 85 2, and 87.2 82 are connected (6] In parallel and (b) In series, to a 20.34V battery to. What is the current through each resistor? and b. What is the equivalent resistance of each circuit? In I +2 34Y 100 0 87.20 in 1. Determine to the equivalent resistance of the circuit shown below b. bj the voltage nemas much resistor and c. c) the current in each resistor
