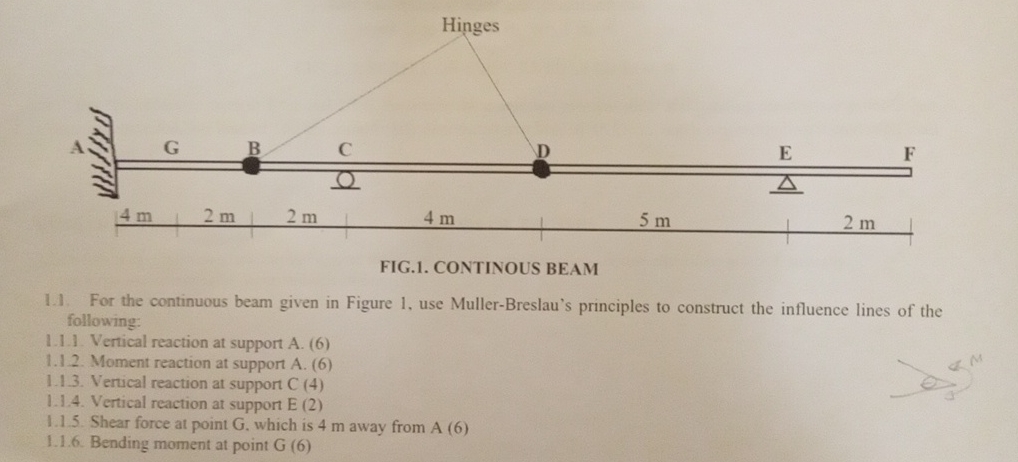

FIG$\mathrm{.}1.$ CONTINOUS BEAM

$1\mathrm{.}1.$ For the continuous beam given in Figure $1,$ use Muller$-$Breslau's principles to construct the influence lines of the following:

$1\mathrm{.}1\mathrm{.}1.$ Vertical reaction at support A$.(6)$

$1\mathrm{.}1\mathrm{.}2.$ Moment reaction at support A$.(6)$

$1\mathrm{.}1\mathrm{.}3.$ Vertical reaction at support $C(4)$

$1\mathrm{.}1\mathrm{.}4.$ Vertical reaction at suppon $E(2)$

$1\mathrm{.}1\mathrm{.}5.$ Shear force at point $G,$ which is $4m$ away from $A(6)$

$1\mathrm{.}1\mathrm{.}6.$ Bending moment at point $G(6)$
