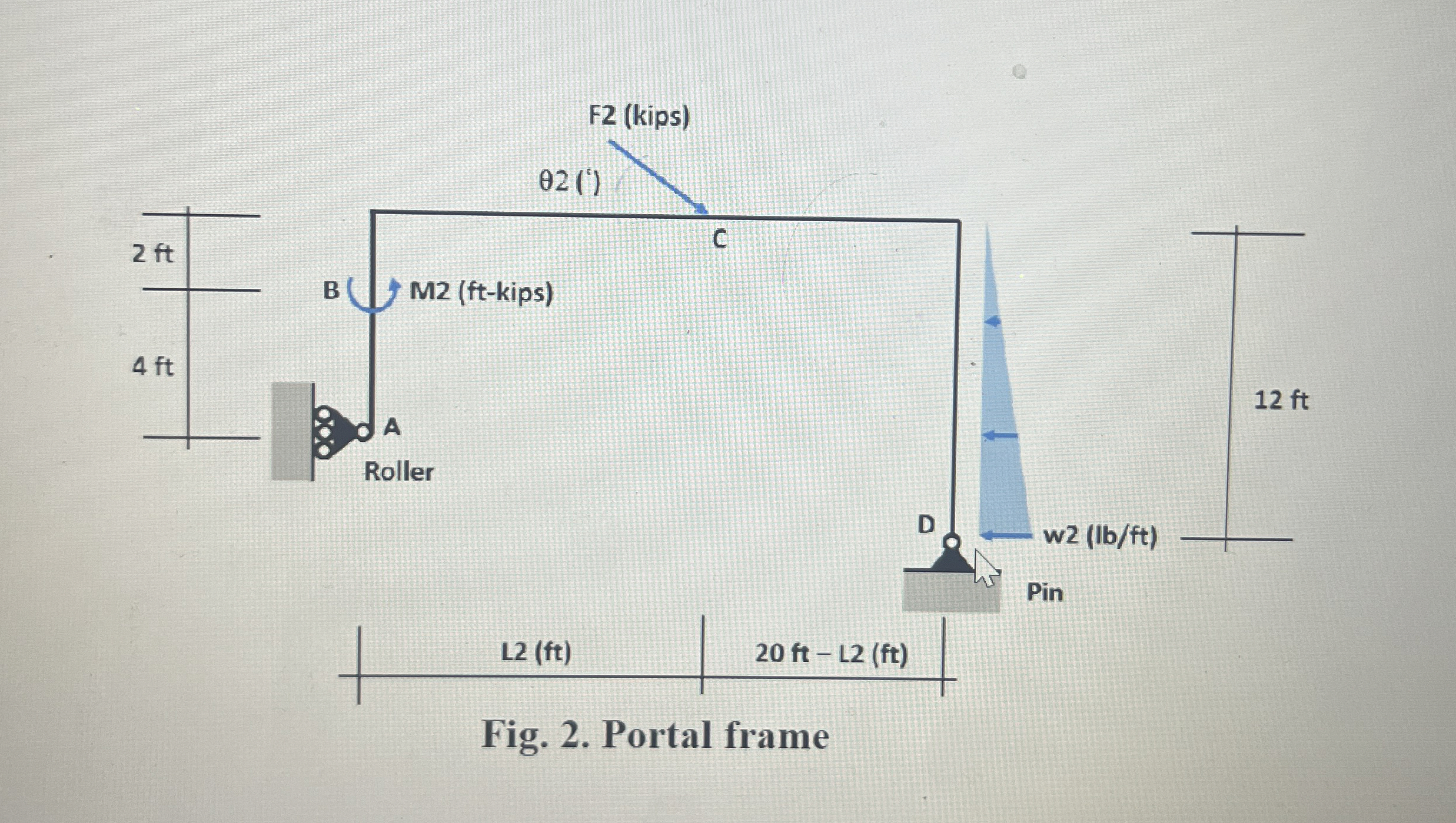

Question: Fig. 2 . Portal frame Identify support types, draw a free body diagram indicate resultant forces for distributed loads, resolved diagonal forces, mark the line

Fig.

2 .

Portal frame

Identify support types, draw a free body diagram indicate resultant forces for distributed loads, resolved diagonal forces, mark the line of action, write equilibrium equations, solve for unknown reactions, determine internal forces. F

2 = 13,

2 = 14,

degrees

= 45,

2 = 7,

2 = 800

Fig. 2 . Portal frame Identify support types,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
