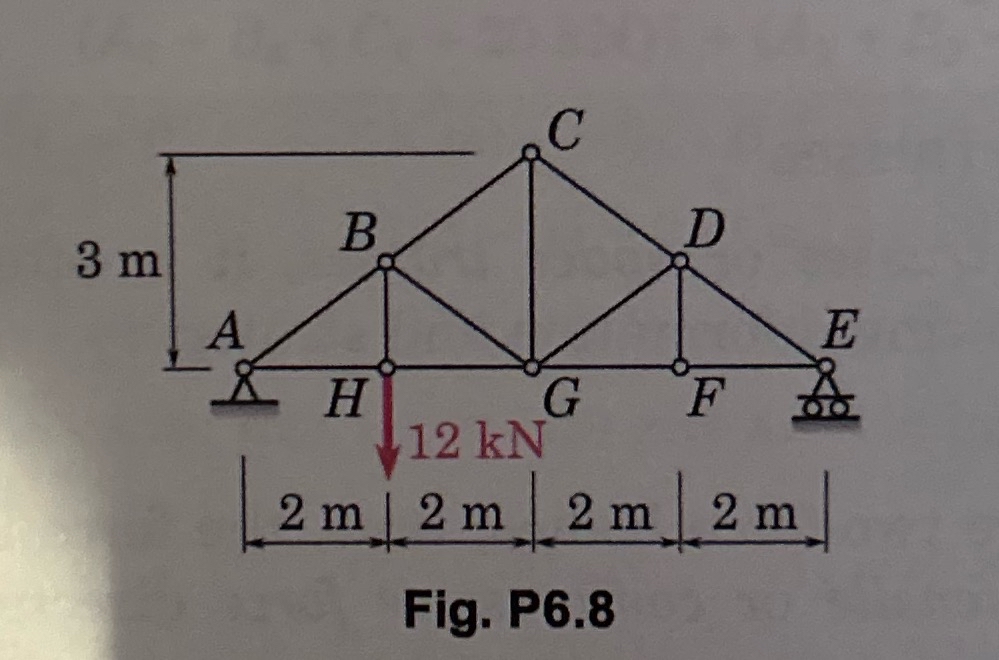

Question: Fig. P 6 . 8 Using the methods of joints, determine the force of each member of the truss

Fig. P6.8 Using the methods of joints, determine the force of each member of the truss
Fig. P 6 . 8 Using the methods of joints,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
