Question: Figure 1 6 ) ( 2 . 5 points ) Place each letter of the items on the drawing in Fig. 1 next to the

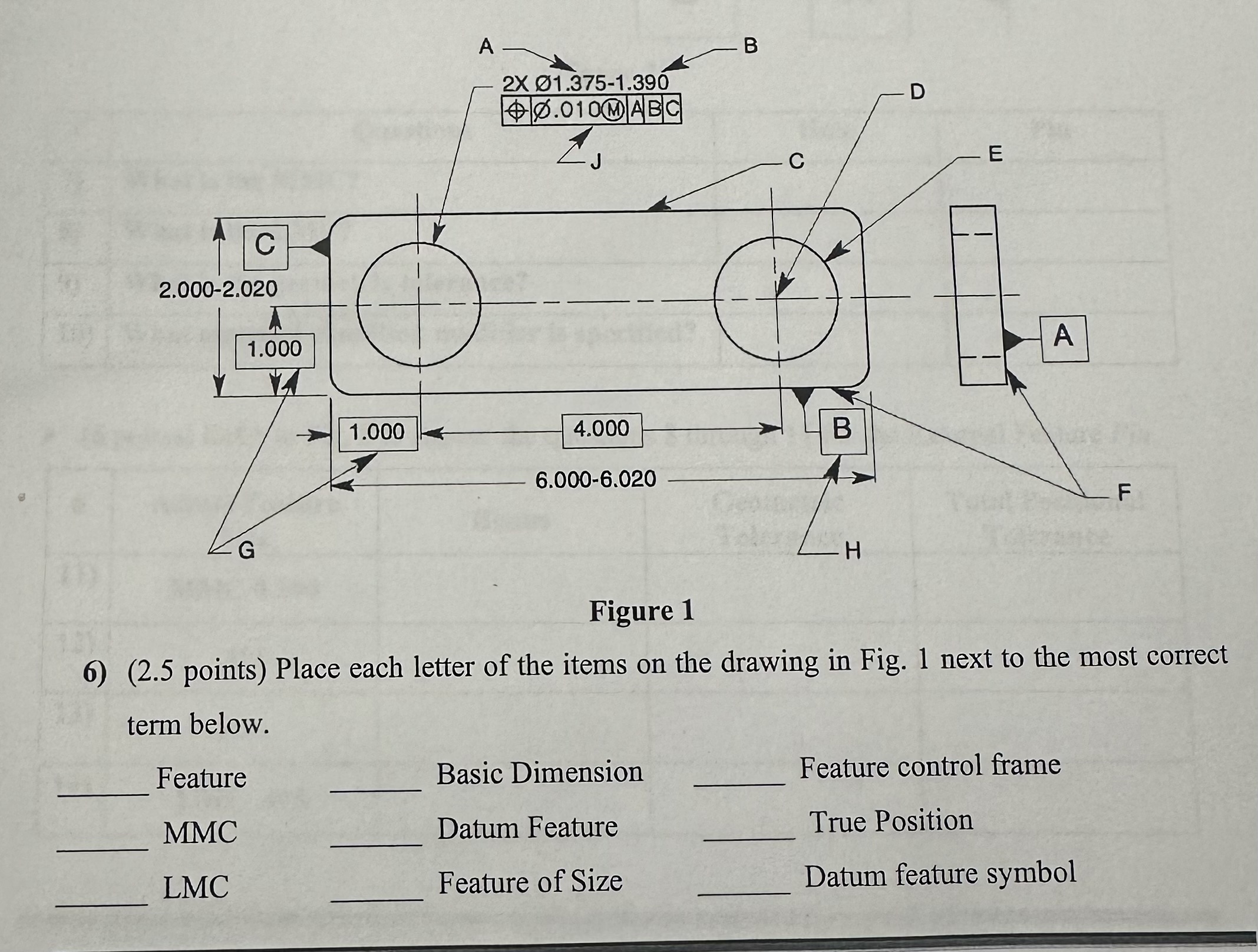

Figure 1
6)(2.5 points) Place each letter of the items on the drawing in Fig. 1 next to the most correct term below. Feature Basic Dimension Feature control frame MMC Datum Feature True Position LMC Feature of Size Datum feature symbol
Figure 1 6 ) ( 2 . 5 points ) Place each letter
