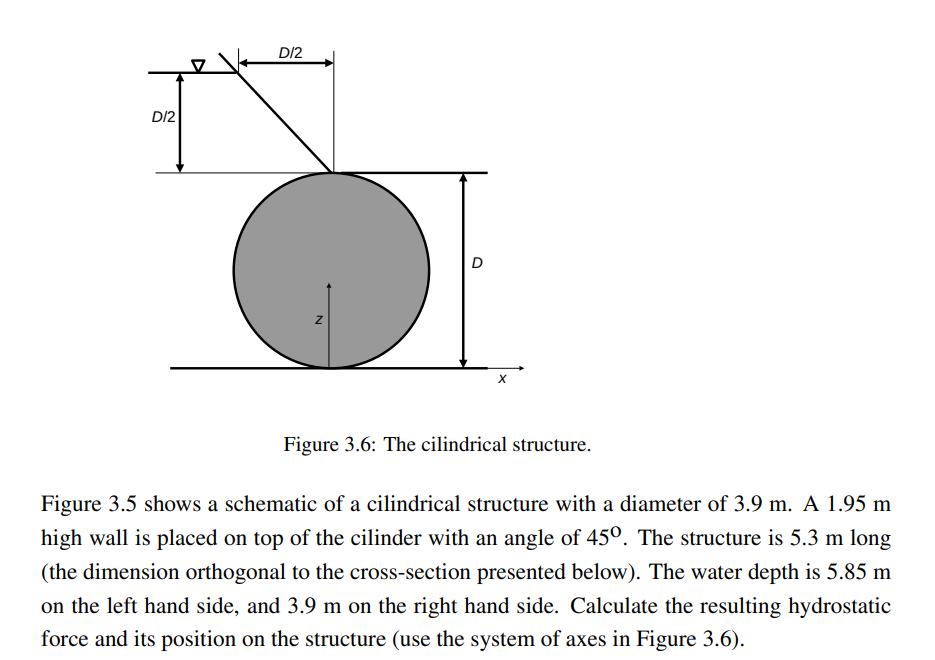

Figure $3\mathrm{.}6$: The cilindrical structure.

Figure $3\mathrm{.}5$ shows a schematic of a cilindrical structure with a diameter of $3\mathrm{.}9m.$ A $1\mathrm{.}95m$

high wall is placed on top of the cilinder with an angle of $45.$ The structure is $5\mathrm{.}3m$ long

$($the dimension orthogonal to the cross$-$section presented below$).$ The water depth is $5\mathrm{.}85m$

on the left hand side, and $3\mathrm{.}9m$ on the right hand side. Calculate the resulting hydrostatic

force and its position on the structure $($use the system of axes in Figure $3\mathrm{.}6).$

Find

The horizontal component of the hydrostatic force : N

The vertical component of the hydrostatic force : N

The total hydrostatic force : N

The location x of the hydrostatic force : m

The location y of the hydrostatic force : m

The angle with respect to the horizontal direction of the hydrostatic force : Degrees
