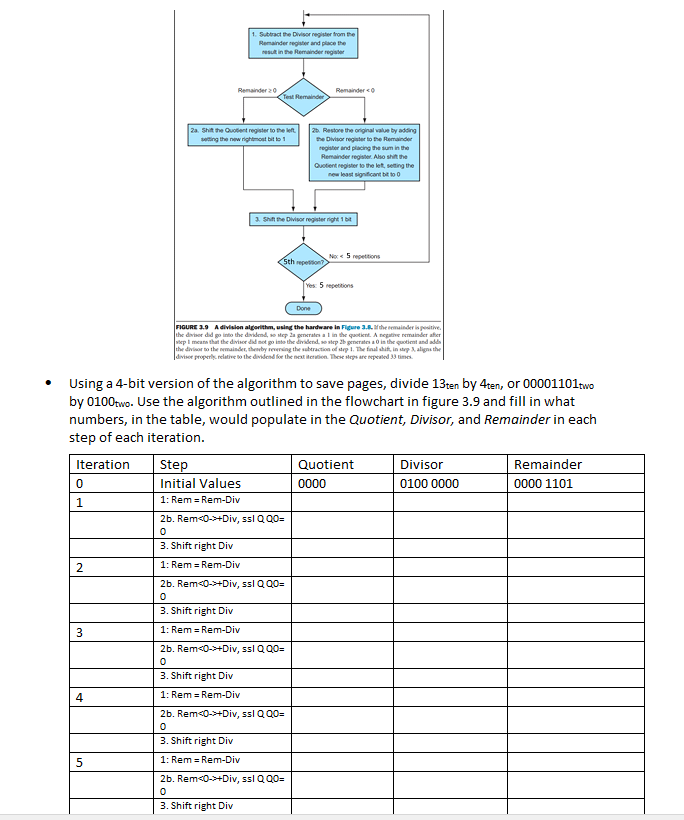

FIGURE $3\mathrm{.}9$ A division algorithm, using the hardware in Figure $3\mathrm{.}8.$ Mithe temuinder is pesitive.

Using a $4-$bit version of the algorithm to save pages, divide $13\_($ten $)$ by $4\_($ten $),$ or $00001101$two

by $0100\_($two $).$ Use the algorithm outlined in the flowchart in figure $3\mathrm{.}9$ and fill in what

numbers, in the table, would populate in the Quotient, Divisor, and Remainder in each

step of each iteration.
