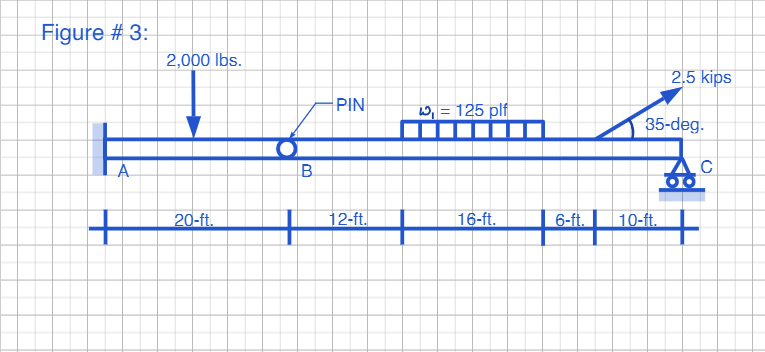

Figure $3$: Determine the horizontal support reaction Ax$.[00]$ kips. If the reaction is acting toward the left, enter a negative sign preceding the magnitude value. Round to the nearest $0\mathrm{.}1$ kips

Figure $3$: Determine the vertical support reaction Ay$.[00]$ kips. If the reaction is acting downward, enter a negative sign preceding the magnitude value. Round to the nearest $0\mathrm{.}1$ kips.

Figure $3$: Determine the moment support reaction MA$.[00]$ kip$-$ft$.$ If the reaction is acting in the clockwise direction, enter a negative sign preceding the magnitude value. Round to the nearest $0\mathrm{.}1$ kip$-$ft$.$

Figure $3$: Determine the horizontal pin reaction Bx$.[00]$ kips. Do not include any information regarding the direction of the reaction; just enter the reaction magnitude. Round to the nearest $0\mathrm{.}1$ kips.

Figure $3$: Determine the vertical pin reaction By$.[00]$ kips. Do not include any information regarding the direction of the reaction; just enter the reaction magnitude. Round to the nearest $0\mathrm{.}1$ kips.

Figure $3$: Determine the vertical support reaction Cy$.[00]$ kips. If the reaction is downward, enter a negative sign preceding the magnitude value. Round to the nearest $0\mathrm{.}1$ kips.
