Question: Figure 3 : Second Order Active Sallen - Key Filter 3 . Consider the second order Sallen - Key circuit configuration illustrated in 3 .

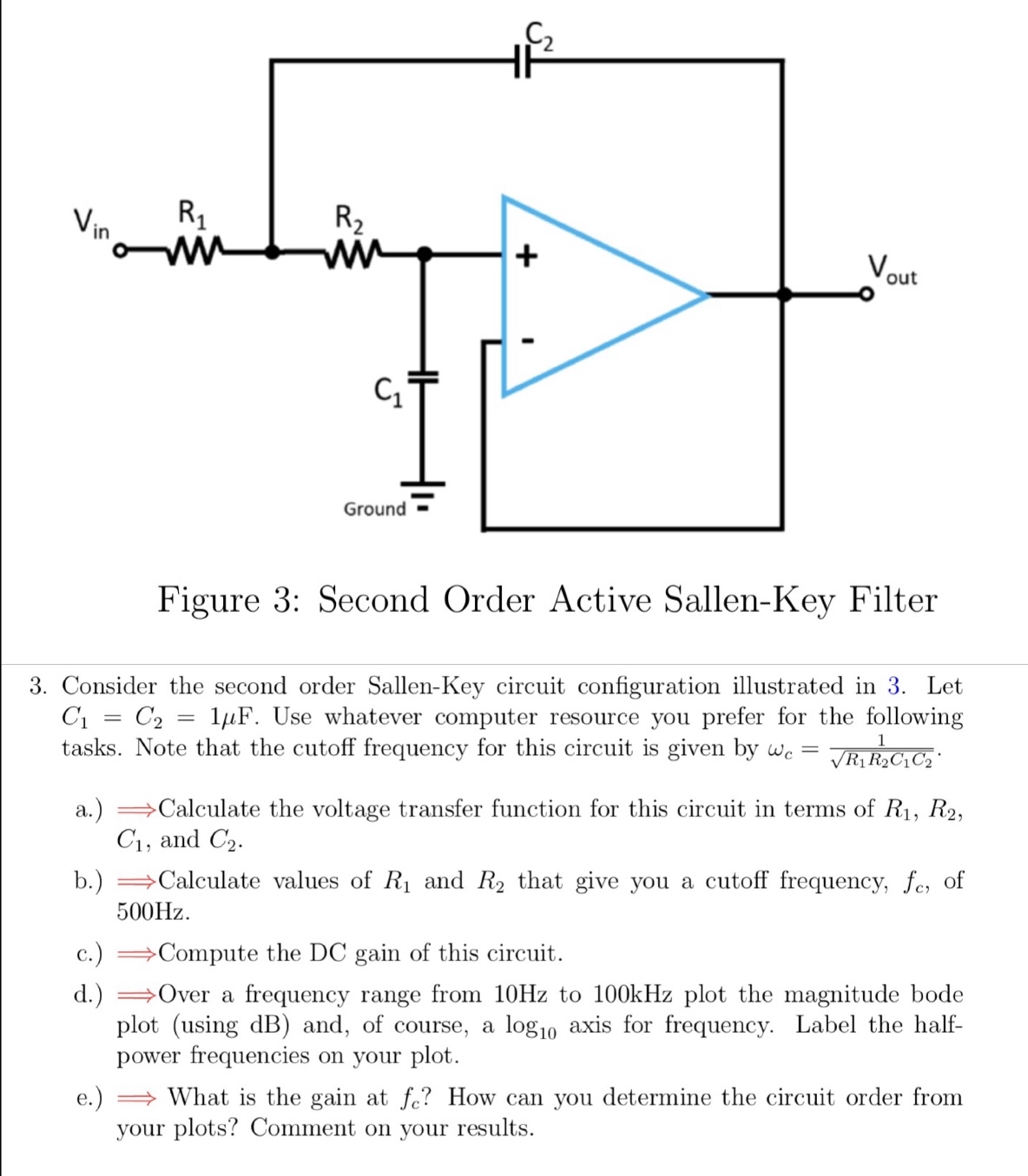

Figure 3: Second Order Active Sallen-Key Filter
3. Consider the second order Sallen-Key circuit configuration illustrated in 3. Let C1=C2=1F. Use whatever computer resource you prefer for the following tasks. Note that the cutoff frequency for this circuit is given by c=1R1R2C1C22.
a.) Longrightarrow Calculate the voltage transfer function for this circuit in terms of R1,R2,C1, and C2.
b.) Longrightarrow Calculate values of R1 and R2 that give you a cutoff frequency, fc, of 500 Hz .
c.) Longrightarrow Compute the DC gain of this circuit.
d.) Longrightarrow Over a frequency range from 10 Hz to 100 kHz plot the magnitude bode plot (using dB) and, of course, a log10 axis for frequency. Label the halfpower frequencies on your plot.
e.) Longrightarrow What is the gain at fc? How can you determine the circuit order from your plots? Comment on your results.
Figure 3 : Second Order Active Sallen - Key
