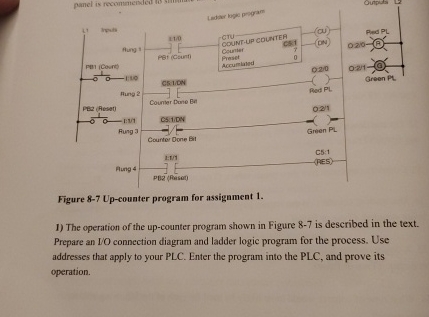

Figure $8-7$ Up$-$counter program for assignment $1.$

The operation of the up$-$counter program shown in Figure $8-7$ is described in the text. Prepare an I$/$O connection diagram and ladder logic program for the process. Use addresses that apply to your PLC$.$ Enter the program into the PLC$,$ and prove its operation.

Oulpis

Figure $8-7$ Up$-$counter program for assignment $1.$

The operation of the up$-$counter program shown in Figure $8-7$ is described in the text. Prepare an I$/$O connection diagram and ladder logic program for the process. Use addresses that apply to your PLC$.$ Enter the program into the PLC$,$ and prove its operation.
