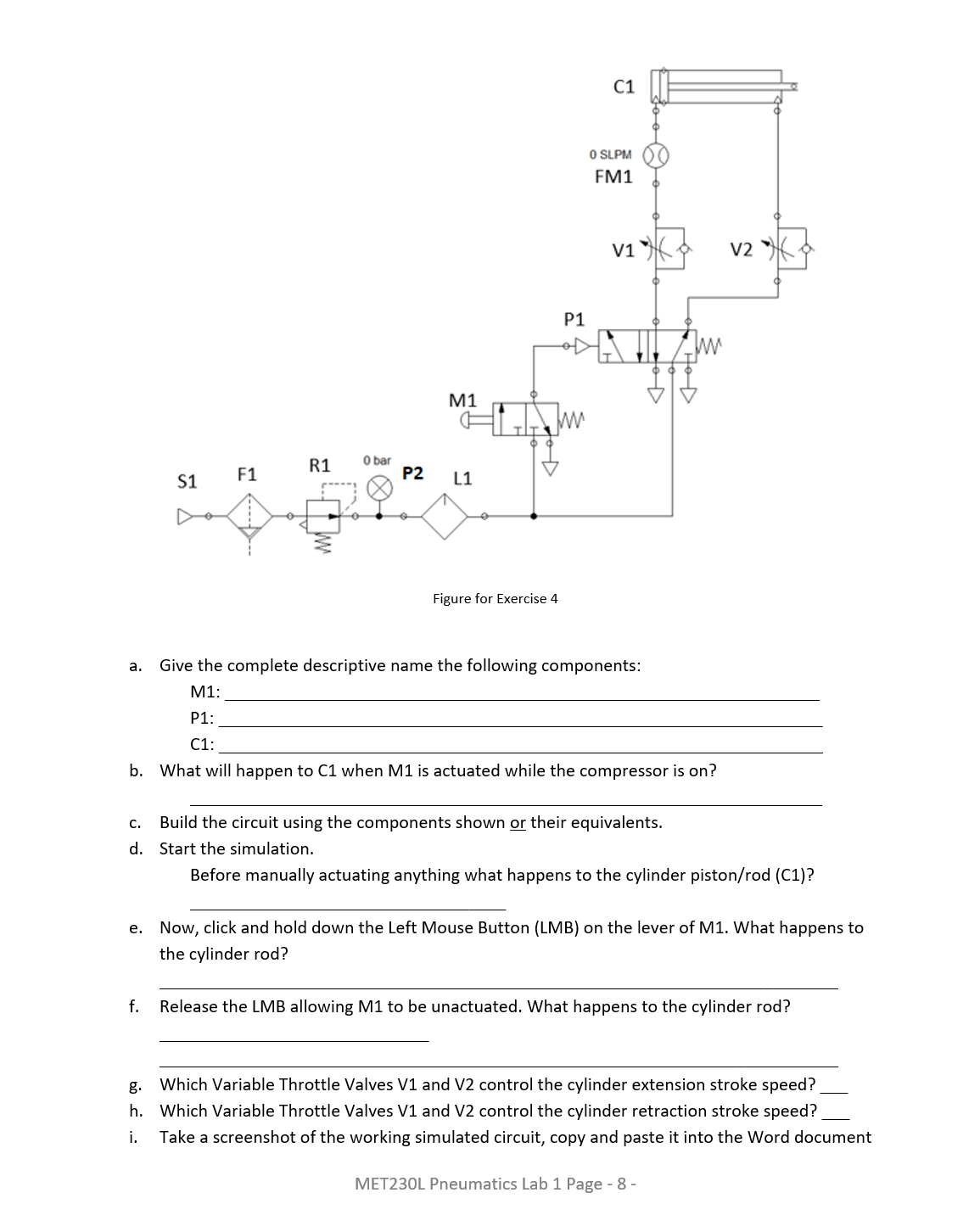

Figure for Exercise $4$

a$.$ Give the complete descriptive name the following components:

M$1$:

$1$:

b$.$ What will happen to $C1$ when $M1$ is actuated while the compressor is on$?$

c$.$ Build the circuit using the components shown or their equivalents. $($Automation Studio$)$

d$.$ Start the simulation.

Before manually actuating anything what happens to the cylinder piston$/$rod $($C$1)?$

e$.$ Now, click and hold down the Left Mouse Button $($LMB$)$ on the lever of M$1.$ What happens to

the cylinder rod?

f$.$ Release the LMB allowing M$1$ to be unactuated. What happens to the cylinder rod?

g$.$ Which Variable Throttle Valves V$1$ and V$2$ control the cylinder extension stroke speed?

h$.$ Which Variable Throttle Valves V$1$ and V$2$ control the cylinder retraction stroke speed?
