Question: Figure No . 2 Figure No . 3 4 . For the beam shown in Figure No . 2 , use Castigliano's theorem to determine

Figure No.2
Figure No.3

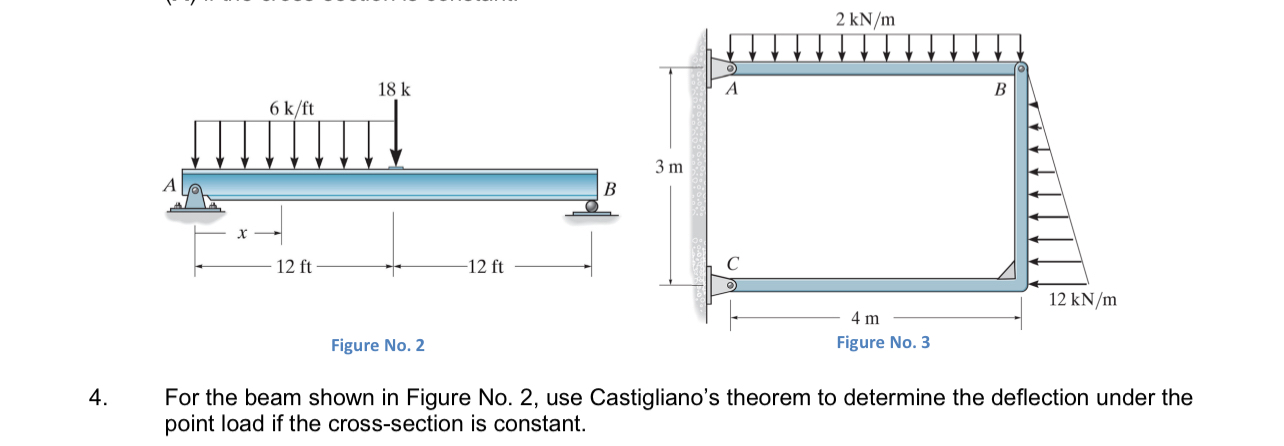

4. For the beam shown in Figure No.2, use Castigliano's theorem to determine the deflection under the point load if the cross-section is constant.
Figure No . 2 Figure No . 3 4 . For the beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
