Figure No$.2$ Only please

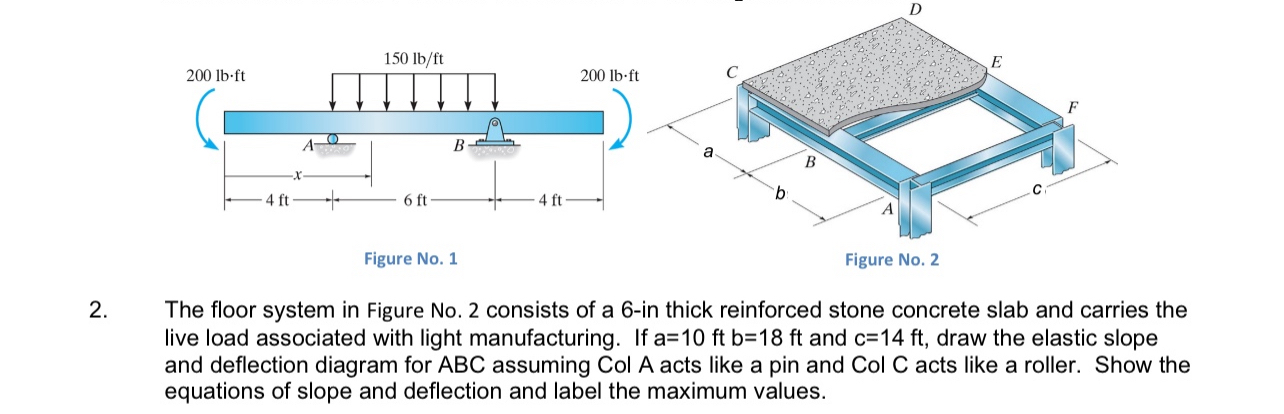

The floor system in Figure No$.2$ consists of a $6-$in thick reinforced stone concrete slab and carries the

live load associated with light manufacturing. If $a=10ftb=18ft$ and $c==14ft,$ draw the elastic slope

and deflection diagram for ABC assuming Col A acts like a pin and Col C acts like a roller. Show the

equations of slope and deflection and label the maximum values.
