Question: Figure shows an assembly subject to external loading. a . Draw the FBD of the entire assembly ( do not explode assembly ) b .

Figure shows an assembly subject
to external loading.

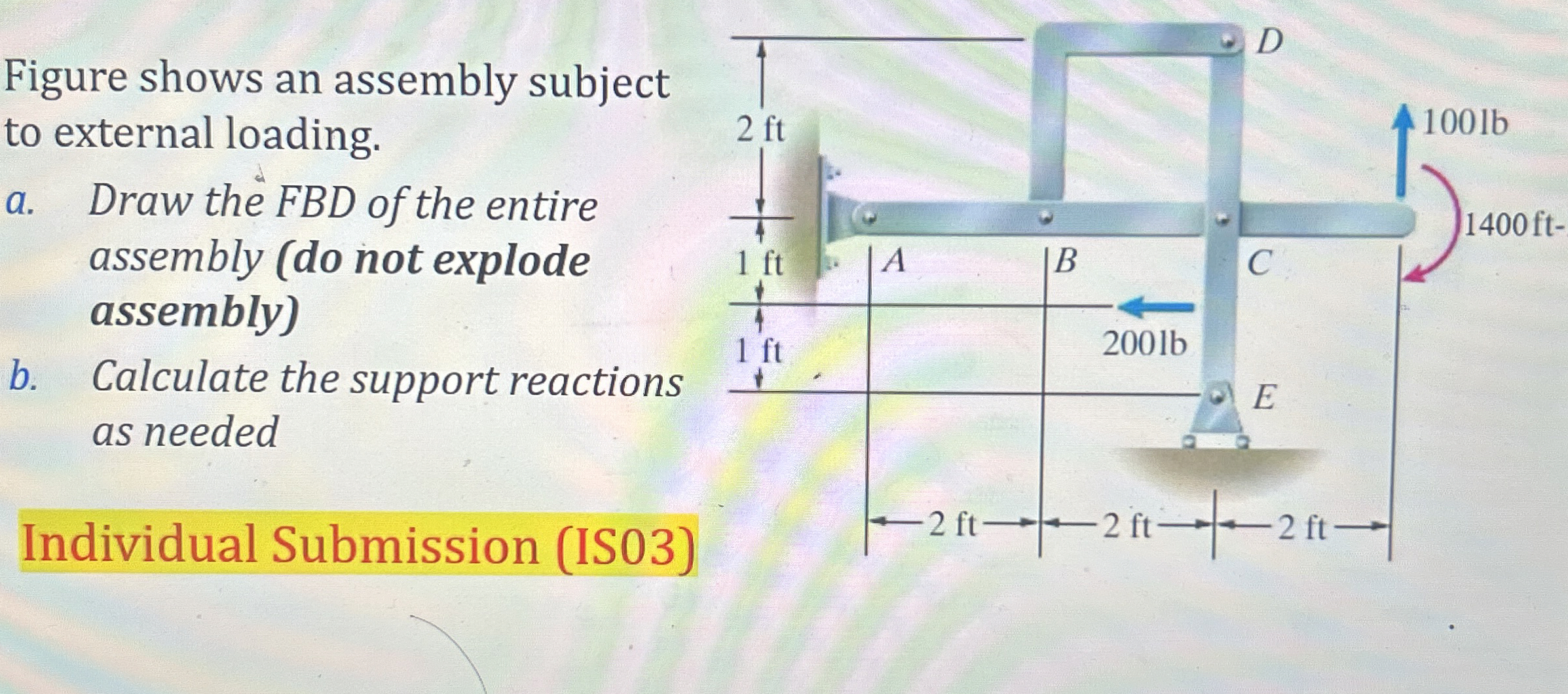

a. Draw the FBD of the entire
assembly (do not explode
assembly)
b. Calculate the support reactions
as needed
Individual Submission (IS03)
Figure shows an assembly subject to external

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
